Basic Info

Product Description

Product Details

Basic Specification

Working Voltage	DC5V
IC Model No	LPD6803
Certificates	CE and ROHS
Spec	40pcs/chain
Life	50,000hrs
IP	IP65
Temperature	℃
Voltage	6V
Color	Full-color Single Point of Control
Color Mode	Full-color Single Point of Control
Power	0.3w

Detail Description

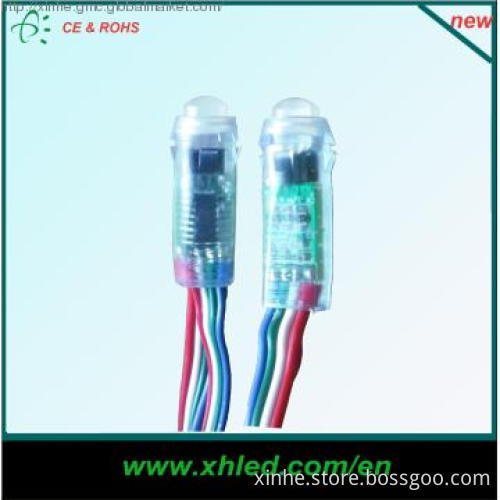

Waterproof LED Point Light

Features
It has compact appearance, plugging card-style design, and using drilling installation design which allow it to be freely tailored, connected and make installation and maintenance easier.Adopoting PWM controlling, 256-grade gray adjusting,the communication distance between two points could be long as 100m.

Applications:
It is widely used in light-emitting word, special-shaped screen, wall lighting, background wall and other projects,

Parameters:

LED Quantity：1PCS F8 Flat Head RGBLED
Working Voltage：DC5V
Power：0.3W(DC5V)
Protection Class：IP65
Working Voltage：-40C℃-˜60℃
Lighting Intensity：When white balance≥700mcd
Viewing Angle：120°
Color：RGB Full-Color
Lifespan：50,000 hours
Size：F12*36mm
Drilling Size：Ф12mm
IC Model No:LPD6803

Remarks:40pcs/chain,Distance between the centers of two lamps is 80mm,
Direction of Arrow is out end，for the whole chain,female plug is input end,male plug is output end,the two extra wires for power supply.

Please cut off the power when maintenance
