Waterproof 60 LEDs 3528 Strips ,LED Flexible Strips, LED Strips
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Light Source | LED |
|---|---|
| Voltage | 12V |
| Colour | Others |
Detail Description

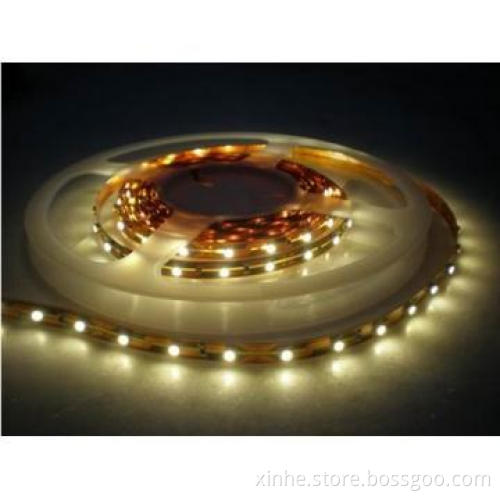

Waterproof 60 LEDs 3528 Strips ,LED Flexible Strips, LED Strips
A. LED Flexible Strips fully exerts the advantages of LED point light source,such as long lifespan,high luminance,energy-saving and so on.And you also can control them by controllers to synchronous color changes, sectionalized changes and other effects,so it has a wide application,such as side light guiding,route,profile,lines,lighing signboard\\windows,exhibition cabinet and so on.
B.It has a compact size,can be divided according to every section,convenient for installation and maintenance.
Parameters:
Parameter |
Symbol |
Condition |
Range |
Unit |
||
Voltage of the power supply |
VDD |
Direct current |
12 |
V |
||
Working temperature |
Top |
DC12V,50%RH |
-20~+40 |
°C |
||
Working humidity |
B |
DC12V,25°C |
98 |
%RH |
||
Viewing angle |
2θ1/2 |
|
120 |
° |
||
Basic color |
Color |
60LED/1M single color |
Red, green, blue, yellow, white |
|
||
Light attenuation rate 1000H) |
—— |
DC12V,25°C |
5~8 |
% |
||
Internal protection |
IP |
Out-door use |
IP67 |
|
||
Weight |
Nw |
N.W. |
392 |
G/5M |
||
Drilling size |
D |
—— |
—— |
MM |
||
Length of wire |
Ls |
general |
|
MM |
||
Material of shell |
Soft plastic |
|||||
Color of shell |
transparent |
|||||
Gasket cement |
Soft water-proof silicone |
|||||
Accessory |
12vDC power supply(please choose the power supply according to the total power) |
|||||
Series products | ||||||
Model No |
Color |
Appearance |
Luminance (cd/string) |
Wavelength Color temperature |
Power/string(w) |
|
Max |
Min |
|||||
XH-126RCS360AR |
red |
3528 |
1500 |
1000 |
620~630nm |
5
|
XH-126RCS360AY |
yellow |
2000 |
1500 |
585~595nm |
||
XH-126RCS360AB |
blue |
1000 |
700 |
455~470nm |
||
XH-126RCS360AG |
green |
3000 |
2500 |
510~525nm |
||
XH-126RCS360AW |
white |
5000 |
4000 |
6500~7000K |
Additional Information
| Payment Terms | L/C, T/T, Others |
|---|---|
| Minimum Order | 1000 |
| Lead Time / Delivery Time | 5 Day(s) |
| Sample Available | YES |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
