All Colors of SMD LED Strip Light
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Light Source | LED Lamp |
|---|
Detail Description

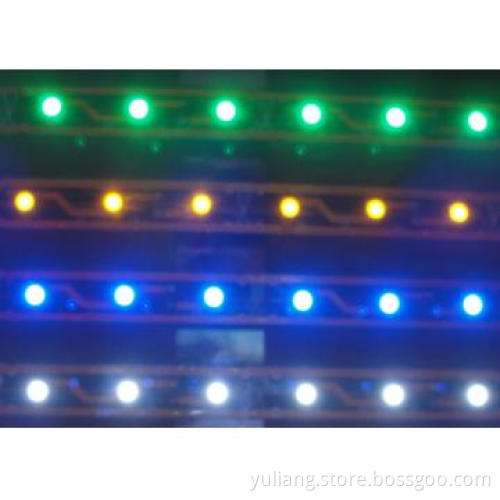

All colors of smd led strip light
LED type: 5050 SMD LED
60 LED per meter
LED brand: Epistar Taiwan
Life time: 50000 hours
Warranty time: 2 years
Environment-friendly
Saving energy much more
More color for choise
CE certifications
Main features
Description |
5050 SMD LED strip |
||||||||||
Light sourcing |
5050 SMD |
Size |
LED Qty: 60LED per meter 5M per reel, 0.5M to 5M are all available; Width:12mm; |
||||||||
Beam Angle |
140° |
Chip quantity |
3 pcs |
||||||||
Available Color |
White |
Red |
Yellow |
Blue |
Green |
Warm white |
RGB Full color |
||||
Luminous intensity/light |
3000- 6000 mcd |
600- 1200 mcd |
600- 1200 mcd |
500- 1000 mcd |
4000- 8000 mcd |
3000- 6000 mcd |
R:200-800mcd B:200-600mcd G:1400-2000mcd
|
||||
|
Wave length/ nm |
/ |
622- 627 |
588- 592 |
465- 470 |
515- 520 |
/ |
/ |
||||
Working voltage |
12VDC or 24VDC |
Working current/unit |
60mA |
||||||||
Available condition |
Outdoor |
Non-Water proof |
|
||||||||
Life |
50000 hours |
||||||||||
Speciality |
1.3 pcs SMD per unit. It could be cut between each unit freely. 2.With flexible shap and can be installed on any uneven side 3.3M adhesive on back 4. with mini size and more color 5. low current, low power to save energy
|
||||||||||
Applications:
- Car decoration
- Architectural decorative lighting
- Archway,canopy and bridge edge lighting
- Amusement park, theater, and aircraft cabin mood lighting
- Emergency hallway lighting
- Auditorium walkway lighting
- Stairway accent lighting
- Backlighting for signage letters
- Backlighting for signage letters
- Channel letter lighting
- Emergency exit path lighting
- Cove lighting
Attention:
1. Storage Temperature: -40 to +80°C
Operation temperature: -25 to +60°C
2. Installation environment must be smooth, clean and dry.
3. The part of LED componets can not be fixed on the surface of charp edge.
4. The LED strips should not be collided or crushed with other objects.
5. Following the cutting line, the LED strips can be cut.
Packaging:
Now waterproof: 5M per reel; 60 reels per carton; the gross weight of carton: 6.0KGS; the size of the carton: 48X32X45CM;
Waterproof: 5 M per reel; 30 reel per carton; the gross weight of the carton: 10.5KGS; the size of the carton: 48X32X45CM
Additional Information
| Payment Terms | L/C, T/T, Others |
|---|---|
| Minimum Order | 50meters |
| Lead Time / Delivery Time | 5 Day(s) |
| Sample Available | YES |
| Delivery Details | confirmation of receipt before delivery |
| FOB Port | Shenzhen |
| Packing Info | Now waterproof: 5M per reel; 90 reels per carton; the gross weight of carton: 9.0KGS; the size of the carton: 48X32X45CM;Waterproof: 5 M per reel; 70 reel per carton; |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East, Mainland China |
