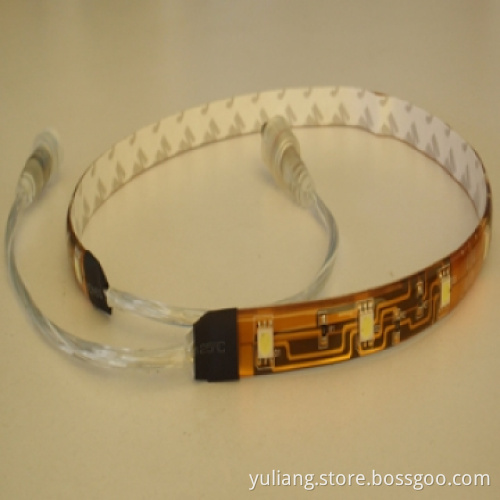

LED Strips with Waterproof Connector

LED type: 5050 SMD LED
30 LED per meter
LED brand: Epistar Taiwan
Life time: 50000 hours
Warranty time: 2 years
Environment-friendly
Saving energy much more
More color for choise
CE certifications
 Main features

Description	LED strip
Light sourcing	5050 SMD	Size	LED Qty: 30LED per meter 5Mper reel, 0.5M to 5M are all available; Width:12mm;
Beam Angle	140°	Chip quantity	3 pcs
Available Color	White	Red	Yellow	Blue	Green	Warm  white	RGB Full color
Luminous intensity/light	3000- 6000 mcd	600- 1200 mcd	600- 1200 mcd	500- 1000 mcd	4000- 8000 mcd	3000- 6000 mcd	R:200-800mcd    B:200-600mcd G:1400-2000mcd
Wave length/ nm	/	622- 627	588- 592	465- 470	515- 520	/	/
Working voltage	12VDC or 24VDC	Working current/unit	60mA
Available condition	Outdoor	Water proof	IP65
Life	50000 hours
Speciality	1.3 pcs SMD per unit. It could be cut between each unit freely. 2.With flexible shap and can be installed on any uneven side 3.3Madhesive on back 4. with mini size and more color 5. low current, low power to save energy

Applications:

1. Car decoration
2. Architectural decorative lighting
3. Archway,canopy and bridge edge lighting
4. Amusement park, theater, and aircraft cabin mood lighting
5. Emergency hallway lighting
6. Auditorium walkway lighting
7. Stairway accent lighting
8. Backlighting for signage letters
9. Backlighting for signage letters
10. Channel letter lighting
11. Emergency exit path lighting
12. Cove lighting

Attention:
1. Storage Temperature: -40 to +80℃
  Operation temperature: -25 to +60℃
2. Installation environment must be smooth, clean and dry.
3. The part of LED componets can not be fixed on the surface of charp edge.
4. The LED strips should not be collided or crushed with other objects.
5. Following the cutting line, the LED strips can be cut.
Packaging:
Now waterproof: 5M per reel; 60 reels per carton; the gross weight of carton: 6.0KGS; the size of the carton: 48X32X45CM;
Waterproof: 5 M per reel; 30 reel per carton; the gross weight of the carton: 10.5KGS; the size of the carton: 48X32X45CM
