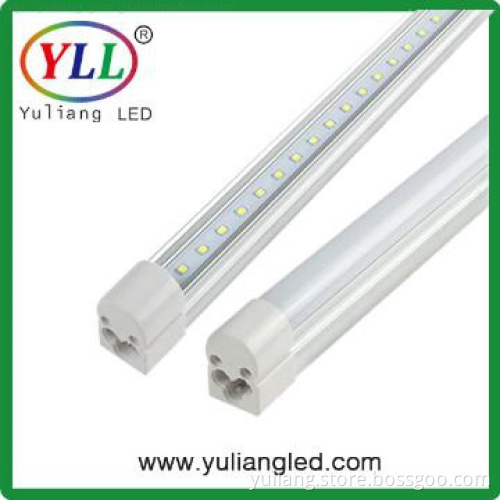

9W 0.9M T5 SMD LED Tubes

9W 0.9M T5 SMD LED Tubes
Basic features:
High luminance LED source: 7.5-8LM/3528SMD
Chips brand: Epistar TaiWan
Chips size: 10X23 MIL
Long life time with over 50000 hours
ITHD<20%
PF>90%
EMC&LVD certifications and Rohs compliant
Saving energy much more
No flicker, no radialization,little CO2 production
Environment friendly, no Hydrargyrum and other harmful material in the tube
Special structure with aluminium cover and aluminium PCB for good heat elimination
Super quality aluminium: heat elimination factor: 2.8
Super quality PVC material: origin in Japan
High efficiency factor of driver: >90%
 Three years warranty
Detail features:

Description	T5 SMD LED tubes
Lighting Source	3528 SMD LED; 7.5-8LM/ LED
Available length	0.6M(96LED)	0.9M(144LED)	1.2M(192LED)
Luminous flux	580LM	805LM	1100LM
Power	6W	9W	12W
Material	Alloy + PC
Efficiency	90%	Life time	50000hours
available beam color	warm white	pure white	cool white
Beam color	2700K-4500K	4500K-5500K	5500K-7500K
Certifications	CE, Rohs, ETL


 Environment requirements:
Working teamperature:
Working temperature: -20 degree to 40 degree
Storage temperature: -30 degree to 60 degree
Working humidity: 30% to 85%
Storage humidity: 10% to 90%
 Installation guide:

1.        Take away the starter and ballast on your current fluorescent tube fixture
2.        Open the cover of the bracket and revice the method of wire connect as bellow
3.        Close the bracket cover and install the LED tube.

Packaging detail:


Tube type	Qty per Ctn	Qty per inner box	Size of Ctn/cm	GW/Ctn	NW/Ctn
1.2Mtube	20 pcs	1pc	133x75x45	14.9KGS	10.5KGS
0.9Mtube	20 pcs	1pc	133x75x45	12.5KGS	7.9KGS
0.6Mtube	40 pcs	1pc	133x75x45	14.5KGS	10.5KGS
