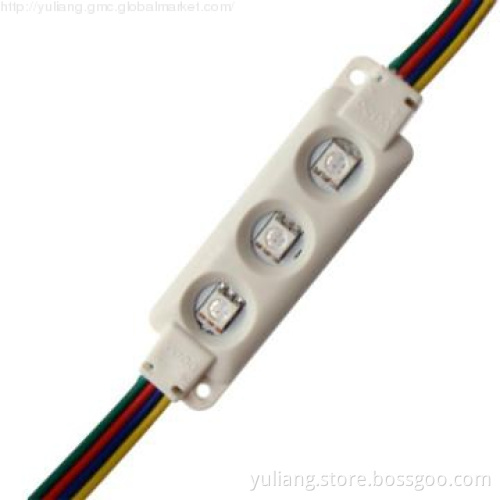

Waterproof Epistar Taiwan Chip 5050SMD LED modules
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| size | 12X75CM |
|---|---|
| Other | with 3M double adhere tape backside |
| certification | CE, Rohs |
| Packaging | with anti static bag |
| LED chip brand | Epistar TaiWan |
| Life | 50000 hours |
| IP | IP65 |
| Lumen | 24LM |
| Color | Colorful |
| Temperature | ℃ |
| Color Mode | Colorful |
| Voltage | 12V |
| Power | 1.44W |
Detail Description
Waterproof Epistar Taiwan Chip 5050SMD LED modules
LED type: 5050 SMD LED
LED chips brand: Epistar TaiWan
Super quality LED chips
Life time: over 50000 hours
Warranty time: two years
Saving energy much more
Environment-friendly
Voltage: 12VDC or 24VDC
Available color: red, yellow, blue, green, pure white, warm white
Main features:
| Description | 3 pcs 5050 SMD LED module | |||||
| Available color | Pure white | Warm white | blue | yellow | red | green |
| Wave length | 4000-5000K | 3500-4000K | 455-470 nm | 625-630nm | 620-630nm | 510-525nm |
| Lumen/LM | 85-100 | 80-95 | 40-55 | 50-65 | 80-97 | 135-150 |
| Beam angle | 140-180 | Power | 1.44W | |||
| Input voltage | DC12V | Working currency | 120MA | |||
| Operation temperature | -45-60℃ | Thermal management | With constant current | |||
| House | Aluminium | Certification | CE, UL, RoHS |
Applications:
Advertisement board lighting
Backlighting for sign letters
Channel letter lighting
Emergency hallway lighting
Signal mark letters
Attention:
1. Storage Temperature: -40 to +80℃
Operation temperature: -25 to +60℃
2. Installation environment must be smooth, clean and dry.
3. The part of LED componets can not be fixed on the surface of charp edge.
Packaging:
200 pcs per bag; 2000 pcs per carton:
the gross weith of the carton: 10.8KGS; the size of the carton:48X32X45CM
Additional Information
| Payment Terms | L/C, T/T |
|---|---|
| Minimum Order | 1000 |
| Lead Time / Delivery Time | 10 Day(s) |
| Sample Available | YES |
| Delivery Details | the goods can be shipped within 10 days after all of the details has been confirmed |
| FOB Port | Shenzhen |
| Loading Info | by sea, by air or by express servicesr |
| Packing Info | 200 pcs per bag; 2000 pcs per carton:the gross weith of the carton: 10.8KGS; the size of the carton:48X32X45CM |
| Target Market(s) | Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Western & Southern Europe |
