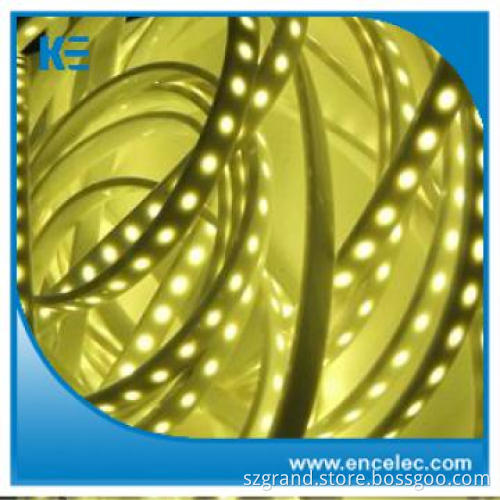

14.4w Opal 5050 waterproof SMD led strip 24v DC

14.4w Opal 5050 waterproof SMD led strip 24v DC

Poducts Feature

1.The thickness of the wires should be adopted based on the possible maximum current, length of wires(10m in maximum is recommended)and the loss in the wires during transit at low voltage.

2.Two ends of connection should be done as waterproof.

3.No touch in static, no work in electricity.

4.The maximum length is 5m, no exceeding in connection.

5.Quality power supply is recommended(with short circuit protection, high voltage and power load protection).

6.It can be cut at the mark of the connection and there will be no affect to its function.

Specification

LED type: 50508 SMD LED

Available colors:  W/M/R/G/B/Y

Viewing angle:  120

LED qty/5m:  300pcs

Life span:  50,000h

Electric parameter

Working voltage(V):  DC24V

Power consumption(W): 14.4W

Driving method:  Constant voltage

Wires&series connection length

Wires Input end connect two-core red and black wire,Red:+;Black:-

Stand length in serial connection:  5m

Maximum length in serial connection: 5m

Outer Parameter

Shell

Color:  Yellow & white

Dimension: 5000*8*2.2mm

Fixed mode

Screw

Double-side adhesive: 5000*8mm,3M double-sided adhesive

Environment Parameter

Working Temperature:  -40C- +50C

Storage Temperature: -50C- +60C

IP grade: IP67
