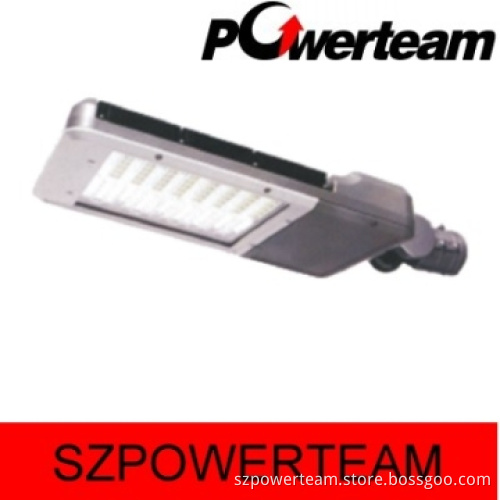

High Power LED Street Lights with Unique Heat Dissipation

High Power LED street lights with unique heat dissipation


Name	LED maintenance free and energy saving street light
Model No.	CYZL513
Input voltage	AC180-260V/50Hz-60Hz
Rated Power	160W
Material	Alufer
Lighting Source	High powered and branded LED chip（64/96/128/168）
Parameters	LED Efficiency	CCT	CRI	Life
	≥90lm/w	6000±500K	Ra≥70	≥50000hrs
Power Supply	Light Efficiency≥90%，Power factor COSΦ≥0.98
Work Environment	Working temperature-25℃～50℃；Working humidity 10%-90%
IP Rating	IP65
Light Size	985mm×360mm×120mm
Color	Pale
Net Weight	17.2Kg
Wiring	Cable 3×1.5mm2  or Wire 1.5mm2
pipe diameter	φ60mm/φ76mm
Mounting Height	10-11M
Package	One piece/Carton

Features:
l The enclosure is made of magnalium, surface positive pole is treated with oxidation technology, high intensity, good impact resistance, good corrosion and UV resistance.
l Good heat dissipation, it can guarantee junction temperature is less than 75 ℃，excellent luminous efficacy and long working life.
l Adopted Wide voltage constant current drive power supply, short circuit protection, working efficiency is 90%; working temperature is controlled under 80 ℃.
l With sand blasting of reflecting shade, it takes anti-dazzle, general lighting, which realizes the real energy conservation and environmental protection
l Operating Ambient Temperature:-25℃-50℃
l Adopted stainless metal fastening piece, easy maintenance and long working life.
l Working life is 50,000hours.

Offer used for :

Various workshop, stadium, large facilities (crane, etc.)

More details show and introduction


Advantages:

1. Biaxial aluminum frame structure design results high structural strength and light weight,

can withstand five times of its own weight without any distortion.

2. Surplus design results strong environmental applicability and long lifespan.

3. Professional self-cleaning design, prevent sand, dust and leaves stacked, assuring

continuous heat dissipation.

4. Excellent secondary optical design, use imported materials to lower optical loss and higher

uniformity.

5. Perfect independent protection design results high reliability, can makes the level

waterproof and dustproof reach IP66.

6. Modular design, easy maintenance, can support high-altitude maintenance on site.

7. LED supplied by reliable famous brand, with proven performance and lifespan.

8. Wide range of power options, can maximum support 300W.

9. Support intelligent control, can be extended for intelligent lighting system.

1. Street lighting, Crossing, Express way, Major/national road, Footpaths,
2. Squares, schools, parks, yards, car parks, Industrial estate, factories,Pavements.

Product Show:




Product Details:


Product Dimension:



Product Packing:





Our Project:



Certificates:

Durable and well-protection package


Our project and application:





We have established long-term friendly cooperation with some wholesalers from European, South American, Asia, and so on. Our long cooperation is based on honesty, high quality, considerate service and fast delivery time.



Additional Information

Payment Terms	T/T, Western Union
Minimum Order	10
Lead Time Delivery Time	7 days
Sample Available	Yes
Delivery Details	7-10 days for sample 20-30 days for mass production
FOB Port	Shenzhen,
Loading Info	by expess/ air/ ship
Packing Info	100pcs /carton
Target Market(s)	Africa(except Middle East),  Central & Southern Asia,  Eastern Europe,  Hong Kong/ Macao/ Taiwan,  Japan & Korea,  Latin America,  Mainland China,  Middle East,  Middle East & South Asia,  North America,  Northern Europe,  Oceania,  Southeast Asia,  Western & Southern Europe
