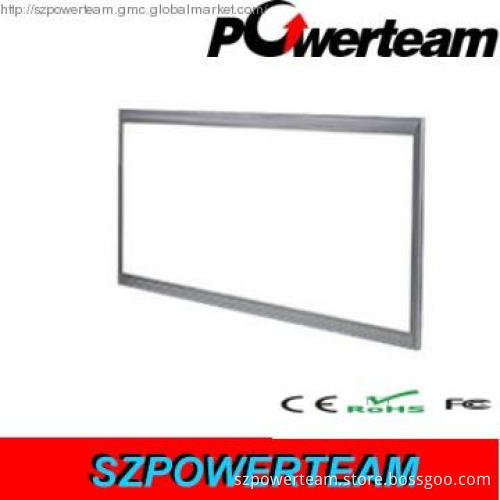

75W LED Panel

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Specification

color	white
Material	Acrylic, Aluminum, PC, Plastic
Application	Airport, Cinema, Hospital, Hotel, Meeting Room, Museum, Office, Restaurant, School, Shopping Mall, Sitting Room
Light Source	LED
Voltage	220V

Product Name	LED Panel Light
Model No.	CYMR5305
Rated Voltage	AC85～265V/50～60Hz
Power	75W
IP Rating	IP20
Housing	Aluminum Alloy
Transparent Cover	Light Guide Plate(LGP)+Diffuser Plate
Light Source	SMD3014 LED
Source Parameters	LED Efficiency	CCT	CRI	Life Expectancy
≥100lm/w	2700～6500K	Ra≥75	≥50000h
Luminous Flux	5040±5lm
Visual Angle	120℃
CF	COSΦ≥0.95
Working Environment	Temp -20℃～50℃;Humidity 10%～90%
Size	Light: 600mm×1200mm×10mm; Packaging:650mm×1305mm×80mm
Color	Silver
Net Weight	7.9Kg
Wire	Cable 3×1.5mm²,or Wire 1.5mm²
Installing Methods	Flush Mounted, Suspension Setting
Packing Methods	2 pieces/Carton

Features:

Shakeproof and unbreakable,working life reachs 50,000 hours above.
High luminous efficacy ,obvious energy saving,50% higher than fluorescent tubes.
Low current and low heating value ,keeps light surface temperature being less than 60℃.Safe and reliable.
Side luminance construction,even luminous area with softrays,good glare resistance ,no strobe,no radiation.
Advanced CRI , three color temperatures to be choosed.
No toxic gas and well fire resistance when emergency happens.
Ultra thin design,graceful shape,customized sizes.

Offer Used For:
Metro platforms,workshops,offices,hotels,business clubs,emporiums,houses,etc.

Payment Terms	T/T
Minimum Order	200PCS
Lead Time / Delivery Time	25 Day(s)
Sample Available	YES
Delivery Details	Shenzhen FOB/EXW
FOB Port	Shenzhen
Loading Info	By sea/By air
Packing Info	2 pcs one carton
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
