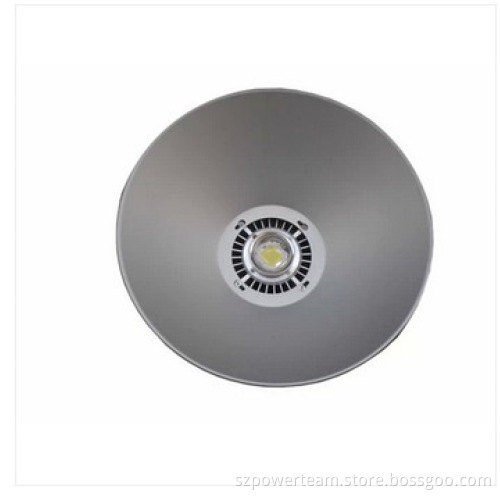

100W led high bay light

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Item Type:	100W high bay light
Lamp Luminous Flux(lm):	11000
Certification:	CE,EMC,RoHS
Lamp Body Material:	aluminum alloy +PC
IP	IP65
Material	Aluminum, PC
Light Source	LED Lamp
Voltage	90-260V

Detail Description

Features:

1 Punching multi-surface three-dimension radiator. Effectively fasten air-flow through the radiator.

2 Pioneering Cu-Mg-Al alloy material, excellent heat conduction rate.

3 Refractive optical lens with high transmittance rate.

4 Elegant and attractive design.

5 US bridgelux high-lumen integrating encapsulated LED chip.

6 Taiwan meanwell power supply(UL listed), reliable and stable.

7 Environmental friendly and energy-saving. Contains no mercury lead. Consume 50%-70% less power than HID high bay light.
Detail description of high power led high bay LED ligh

OPTICAL:
LED Power Consumption	1*200w.
System power Consumption.	220w
LED Initial Flux	17000lm (*pure white 6000k-6500k)
Lamp Maintain Flux	15500lm(*pure white 6000k-6500k).
Illumination (Enadir) (@ pw 6500k 60 degree reflector)	Mount Height=6M:525lux Mount Height=8M:295lux Mount Height=10M:189lux Mount Height=12M:130lux
CRI	WW: Ra68 PW: Ra70.
Light Distribution Curve	Circle Facular.
Beam Angle	140°.
Light Decay	15% (20,000hours).
ELECTRICAL
Input Voltage	AC85V-AC265V (50Hz-60Hz)
Working Voltage	48V DC.
TJ	55°C+_ 10%	Efficiency	85%
Power Factor	0.95	IP Grade	IP54
MECHANICAL
Dimensions	L39W31H31cm(lamp Body Only) Hole size: 50cm*H14cn (120 degree reflector).	Net Weight.	7.0KG +_5%(Lamp body only) 0.5KG+-5%(120degree reflector)
Material	Aluminum Alloy+PC
Working Environment	Temp: -40°C-55°C Humid: 10%-90%.

Additional Information

Payment Terms	T/T, Western Union, Paypal
Minimum Order	5
Lead Time / Delivery Time	2 Day(s)
Sample Available	YES
Delivery Details	FOB ShenZhen
FOB Port	Shenzhen,
Loading Info	by sea and by air
Packing Info	1) 1pc/unit in white box. 2) 10pcs/standard export carton. Neutral package, otherwise, can be customized according to customer requirements of Logo, Brand and etc.
Target Market(s)	North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
