60W-100W LED Flood Lights

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Specification

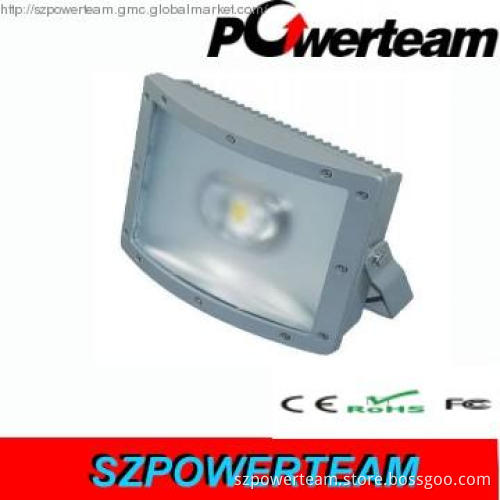

60W-100W,IP65 LED Flood Lights With Bridgeflux Chips,High Quality

Product Name	LED Maintenance Free And Energy Saving Floodlight
Model No.	CYGF532
Input Voltage	AC85-260V/50Hz-60Hz
Rated Power	60W,70W,80W,90W,100W
IP Rating	IP65
Housing	Alufer
Light Source	LED integrated chips
Source Parameters	LED Efficiency	CCT	CRI	Life Expectancy
	≥85lm/w	2700～6500K	Ra≥75	≥50000hrs
Luminous Flux	4600±5%; 5400±5%;6200±5%; 6900±5%; 7600±5%;
Beam Angle	120°
PF	COSΦ≥0.95;Efficiency:90%
Working Environment	TEMP-40℃～55℃;Humidity:10%-90%
Size	Lamp Size:320mm×280mm×175mm Packaging Size:420mm×385mm×340mm
Color	Gray
Weight	Net Weight :7.8Kg , Gross Weight:8.2KG
Wiring	Cable 3×1.5mm2 or Wire 1.5mm2
Installing Methods	Wall Hanging, Vertical Installation
Packaging	One Piece/Carton

The enclosure is made of magnalium, surface positive pole is treated with oxidation technology, high intensity, good impact resistance, good corrosion an UV resistance.
Good heat dissipation, it can guarantee junction temperature is less than 75 ℃, excellent luminous efficacy and long working life.
Adopted Wide voltage constant current drive power supply，current constant ability is +3%～-3%,short circuit protection , working efficiency is 90%,working temperature is controlled under 80 ℃.
With sand blasting of reflecting shade, it takes anti-dazzle, general lighting, which realizes the real energy conservation and environmental protection
Operating Ambient Temperature:-25℃-50℃
Adopted stainless metal fastening piece, easy maintenance and long working life.
Working life is 50,000hours.

Offer used for :
Warehouses, tunnels, toll station ,gas station, stadium, etc.

Payment Terms	T/T
Minimum Order	100pcs
Lead Time / Delivery Time	20 Day(s)
Sample Available	YES
Delivery Details	Shenzhen FOB/EXW
FOB Port	Shenzhen
Loading Info	By air/By sea
Target Market(s)	North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
