10W LED Downlight

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Specification

led	down light
Finishing Color	Silver
IP	IP45
Application	Shopping Mall, Museum, Meeting Room, Hospital, Office, Kitchen, Church, Bathroom, Airport, Car Park, Bathroom Room, Restaurant, Hotel, Gallery, Garage, School, Cinema, Bedroom
Light Source	LED
Voltage	220V
Beam Angle	90º
Material	Acrylic, Aluminum, PMMA

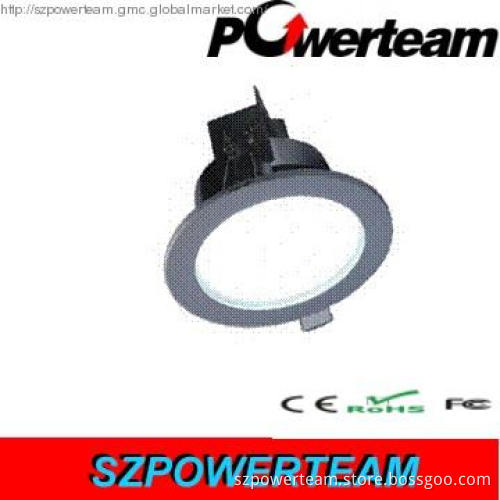

10W LED Downlight

Product Name	LED Downlight
Model No.	CYMT5403
Input Voltage	AC85～265V/50～60Hz
Rated Power	10W
IP Rating	IP20
Housing	Aluminium Magnesium Alloy
Transparent Cover	PC、or PMMA Milky translucent panels
Light Source	LED
Source Parameters	LED Efficiency	CCT	CRI	Life Expectancy
≥110lm/w	2700～6500K	Ra≥75	≥50000hrs
Luminous Flux	850 lm
Visual Angle	180℃
PF	COSΦ≥0.95
Working Environment	TEMP -20℃～50℃
Size	Φ149mmx100mm
Luminous Color	White、Warm White
Wire	Cable 3×1.5mm²,or Wire 1.5mm²
Installing Methods	Flushbonading
Packaging	Four Pieces/Carton

Features:

The enclosure is made of magnalium, good resistance to impact, and good toughness. Light surface adopted electrostatic spray coating, good abrasion and UV resistance.
Good heat dissipation, it can guarantee junction temperature is less than 75 ℃,excellent luminous efficacy and long lifetime.
Adopted Wide voltage constant current drive power supply，current contact ability is +3%～-3%,short circuit protection , working efficiency is 90%,working temperature is controlled under 80 ℃.
Shakeproof and unbreakable, working life reaches 50,000 hours above.
PC cream white transparent plates, even light-emitting area, soft rays ,anti-dazzle ,no strobe, infrared and UV ,radiation ,real environmental protection.
High luminous efficacy ,obvious energy saving,50% higher than fluorescent tubes.
Low current and low heating value makes light surface temperature is less than 60℃,safe and reliable.

Offer used for :
Offices of factories ,mansions ,houses ,hotels ,business clubs, emporiums , schools , hospitals.

Payment Terms	T/T, Western Union, Paypal
Minimum Order	100pcs
Lead Time / Delivery Time	15 Day(s)
Sample Available	YES
Delivery Details	Shenzhen FOB/EXW
FOB Port	Shenzhen
Loading Info	By air/By sea
Packing Info	box packing
Target Market(s)	North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
