LED SMD5050 Rigid Strip

LED SMD5050 Rigid Strip


Description:
Super bright SMD5050 LED strip, 60pcs per meter, high intensity and reliability. It is rigid and full colors ideal for all interior applications. It is easy to installation and compliant with CE and ROHS quality. Waterproof and non-waterproof can be customized by customers.

Features:
1. Good aluminum alloy U shape and V shape housing LED Rigid LED bar.
2. Runs on 12-voltage systems like solar cell charged batteries
3. Major reduction in power costs
4. Long life: 50,000hours
5. 0.5 /1.0meters, Solid-state, high shock / vibration resistant
6. Al-alloy structure better performance and more reliable quality
7. Better performance and more reliable quality

Specification:

Model No.: SZ-RS5050-60-A
1. Type: SMD5050 led rigid strip
2. The width of PCB board: 14mm                                                                            3. LED Quantity: 60PCS SMD5050 LED
4. Color Range: Red, Yellow, Green, Blue,Warm white(3000-3500K), Pure white(4000-5000K), Cool white(5500-6500K).                                                                                     5. Wavelength: R: 620-630nm, G: 510-525nm, B: 455-470nm, Y: 585-595nm                                      6. Energy Consumption: 14.4W per meter
7. Working Voltage: DC 12V
8. Beam Angle: 120 Degree
9. International Protection: IP20 (non-waterproof), IP65 (Crystal Epoxy Waterproof)

Related products:

One-stop accessories

Top quality suppliers of raw material
We owned a full set of superior materials for customers choosing, 100% respect customers needs.
Services advantages

RGB Controller

Power Supply: DC12V-24V
Output Type: Three
Max Load Current:2A/channel
Max Load Power:72W,144W
Remote Type: IR control
Max keys: 24 keys

LED Amplifier

Shell Type: Aluminium housing
Power Supply: DC12V
Input Type: RGB 3 channels
Output Type: RGB 3 channels
Max Load Current:4A/channel
Max Load Power:144W

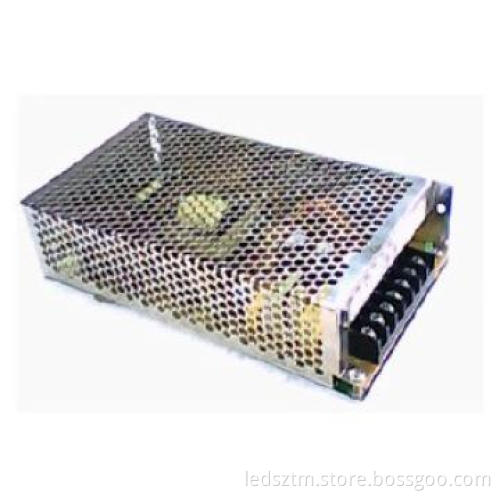

Power Supply

Universal AC input/Full range
Overload protections
100% full loaded aging
Working temperature reach 60°C
Suffer 5g vibration testing

High efficiency and high reliability

Application
This SMD3528 RGB Rigid LED Strip light is widely used to architectural decorative lighting, car decoration, archway, canopy and bridge edge lighting, amusement park, theater and aircraft cabin mood lighting ,emergency hallway lighting, auditorium walkway lighting, stairway accent lighting, concealed lighting, backlighting for signage letters, channel letter lighting, emergency exit path lighting, cove lighting
