Basic Specification
| Life | 50000hrs |
|---|---|
| Power | 26w |
| Package | Yes |
| Tube Diameter | T8 |
| Lamp Base | G13 |
| Color Tones | Cool Color |
| Illuminant | SMD |
| Length | 150cm |
| Light Source Chip | CREE |
| Voltage | 220V |
Detail Description

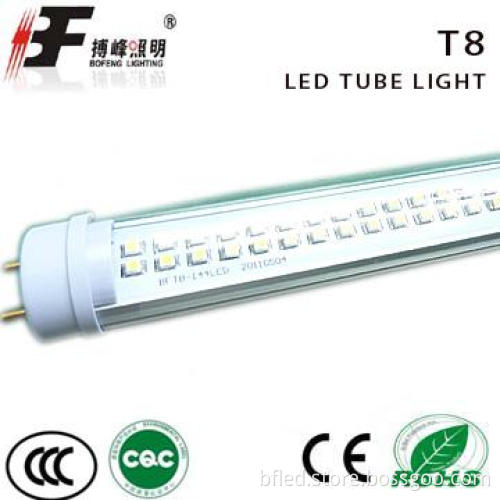

26w inflatable light tube
specification:
Input Voltage |
AC85V~265V |
Frequency Range |
50Hz~60Hz |
Total Harmonic Distortion |
≤ 9 % |
Power Factor |
>0.9 |
Power Efficiency |
>90 % |
Led Consumption |
25 W |
System Consumption |
26W |
LED Luminous Efficiency |
85 Lm /W |
LED Initial Flux |
2300lm |
Lamp’s Efficiency |
92% |
Color Temperature |
3200K~3900K 5500K~6000K |
Color Rendering Index |
Ra>75 |
Light Distribution |
Symmetric/circular spot |
LED Junction Temperature |
≤70°C |
Working Temperature |
-40°C ~ +65°C |
Storage Temperature |
-25°C ~ +65°C(25°C Best) |
IP Grade |
IP44 |
Net Weight |
0.49 Kg |
Working Life-span |
50000H |
Wiring |
Refer to the label or following diagram |
The color of the lamp shell |
Milky /Transparent PC cover |
Silvery aluminum housing | |
Certificates |
CE, RoHS |
Advantage:
1. Energy conservation: compared with fluorescent tube, led tube save > 65% energy
2. Breakage resistance: Front side with PC and backside with Aluminum
3. Isolated power supply inside makes t8 led tube much more safe
4. Eco-friendly: no UV or RF interference, no Mercury or lead
5. Adopt Aluminum PCB for much better heat dissipation
6. Lumen maintenance: 70% remain after 30,000hours
7. No flicking, no humming, lower maintenance costs
8. Runs cool, hatter-proof, moisture resistant
Application:
It is widely used in the following occasion and project. They are wine shop, bars, corridor, marketplace, washing room, western restaurant, museum, exhibition hall, signs, storehouse, indoor lighting, atmosphere creation etc.
[Testing]
[Packing]
Additional Information
| Payment Terms | L/C, T/T, Western Union, Paypal |
|---|---|
| Minimum Order | 25 |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | NO |
| Delivery Details | 7~15 working days |
| FOB Port | Shenzhen |
| Loading Info | DHL/UPS/Fedrex/TNT/EMS for options |
| Packing Info | Each tube in be put into a inner box, each 20 inner boxes will be put into a carton |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Western & Southern Europe |
