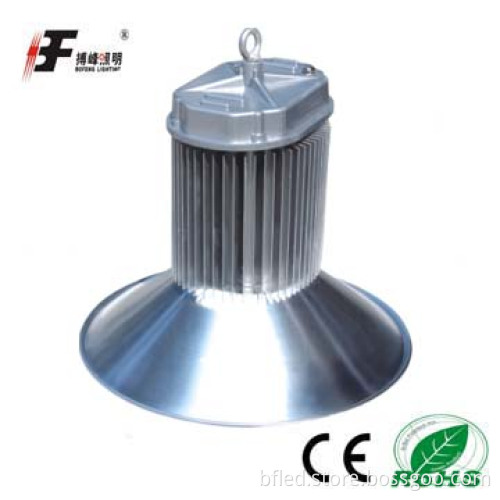

UL Driver 120W LED High Bay
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| IP | IP65 |
|---|---|
| Material | Aluminum |
Detail Description
LED Working Voltage |
AC90～295V |
|
LED Quantity |
1 pcs |
|
LED luminous efficiency |
95 Lm /W |
|
Led Initial luminous Flux |
10500 Lm |
|
lamp’s Efficiency |
＞90 % |
|
Illuminance Uniformity |
＞0.5 |
|
Color Rendering Index |
Ra＞75 |
|
Light Design |
LED+ Reflector |
|
L LED Junction Temperature |
≤80℃ |
|
Working Temperature |
-40℃～55℃ |
|
Storage Temperature |
-25℃～+65℃（25℃the best） |
|
IP Grade |
IP65 |
|
Net weight |
7.4 Kg |
|
Working Life-span |
50,000 Hrs |
|
Wire Connecting (The color of the lamp shell） |
Brown |
L (live line) |
Blue |
N (neutral line) |
|
Yellow/Green |
G (ground line) |
|
Certification |
CE&RoHS |
|
The color of the lamp shell |
Silvery white/Black |
- Power: 50w-350w
- Best sellers: 100w/120w/150w/200w. Integrated single super-bright LED: Bridgelux-chip (90-100lm/w)
- Input voltage: AC100-277V (UL listed driver) or AC85-265V (CE approved driver)
- Any appointed color temperature from 3000-7000K is available, ±200K difference
- Warranty: 3 years warranty (replacement for light source and power supply, etc)
- Lead time: sample order: 3-5 working days. bulk order: 5-15 days (200PCS-500PCS)
- Free Dialux simulation with IES for lighting projects. Easier to be instalLED and to be unloaded. large application scope, like warehouses, factories, supermarkets, Workshops, gas stations, toll stations, exhibition halls, gymnasiums, etc.
- Anodized oxide treated aluminum reflector (45°C/120°C) for light diffusion and anti-corrosion. IP65 for the whole lamp. Special design for heat sinks (Radiator), quick heat dissipation to ensure LEDs long lifetime
- Professional packaging technology, Cartons are quite seaworthy, economical, strong enough to stand rough handling
Application:
Stadiums, workshops, factories, warehouses,packing lots, airports, stations, amusement parks, exhibition halls, shopping malls, etc.
Additional Information
| Payment Terms | L/C, T/T, Others |
|---|---|
| Minimum Order | 5PCS |
| Lead Time / Delivery Time | 10 Day(s) |
| Sample Available | NO |
| Delivery Details | 5-15 days |
| FOB Port | Shenzhen |
| Loading Info | By Air/Sea/Express |
| Packing Info | 1 pcs/box, 4pcs/cartonOutside Packing: 560(mm)*560(mm)*400(mm) |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
