Cycle Programmable and portable Timer Switch with Socket

Cycle Programmable and  portable Timer Switch with Socket

Features：

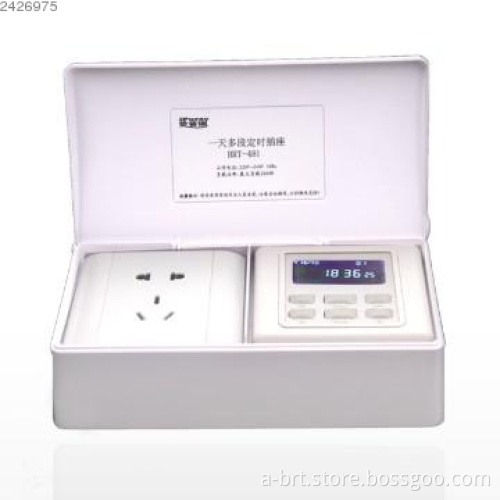

ABR-482 is a LCD display intelligent timer switch with socket and cycle settings. It can be used to control devices which need cycled operations, such as solenoid valve, liquid filling machine, fatigue experiment system etc.

l It’s portable and good for all kinds of loads.
l Intelligent cycle control can reduce manual operation and avoid operator’s fatigue.
l With accurate timer settings to the second.
l Manual control and automatic control are available. After the timer is set, the switch will work automatically. When the system is working, the user can manually turn on or turn off the load.
l Three period timer settings: There are 3 period timer settings. During each period, the user can set a cycled mode. For example, the user sets ON for 5 seconds and OFF for 3 seconds. Then the device will be on for 5 seconds and off for 3 seconds and cycle like that until this period runs out.
l Different cycle modes in one period: The user can also set several cycle modes during one period. For example, the user sets Mode 1 as ON for 5 seconds and OFF for 3 seconds, Mode 2 as ON for 10 seconds and OFF for 2 seconds,…,Mode N as ON for 6 seconds and OFF for 4 seconds. Then the device will work in turn from Mode 1 to Mode N and cycle like that until the period runs out.
l LCD display shows the preset time when setting and shows current time and the latest on/off time after the setting.
l Uses flame resistance ABS-V0 material for safety.


Specifications:


Voltage	220～240V(50Hz/60Hz)	Operating temperature	0℃～55℃
Loads	2000W(Maximum)	Relative humidity	Non-condensing 20-90%
Installation hole spacing	60mm	Matching wall box	75*75*50mm
Switch Dimension	176*88*43mm	Switch weight	470g



One Year Warranty Policy:
If within one (1) year from the date of purchase, this product fails due to a defect in material, Asia Bright will repair it, at its sole option, free of charge. This warranty does not apply to: (a) damage to units caused by accident, dropping or abuse in handling, acts of God or any negligent use; (b) units which have been subject to unauthorized repair, opened, taken apart or otherwise modified; (c) units not used in accordance with instructions; (d) damages exceeding the cost of the product.
