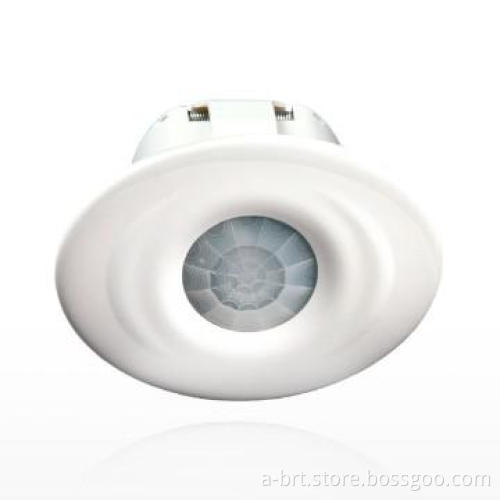

Ceiling Mount PIR Switch/Occupancy Motion Sensor Switch

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Specification

Features:

l Uses Passive Infrared (PIR) enhanced detection technology via a segmented Fresnel lens

l Ceiling mount and with L/N line inputs;

l Ambient-light override option (no switching lights ON when there\'s sufficient sunlight), and the override level can be set by the user;

l Auto ON and Auto OFF with a delay that can be set by the user using dip switches;

l {C}Good for all types of loads

Specifications:

Voltage

220～240V(50Hz/60Hz)

Operating temperature

0℃～30℃

Maximum Wattage

2200W

Relative humidity

Non-condensing 20-90%

Working Diameter

5～7m at a height of 2.4m

Sensing Angle

360 degrees

Dimension

86*86*23mm

Weight

72g

Payment Terms	L/C, T/T, Others
Minimum Order	100pcs
Lead Time / Delivery Time	35 Day(s)
Sample Available	YES
FOB Port	Shenzhen
Target Market(s)	Eastern Europe, Hong Kong/ Macao/ Taiwan, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
