Radio Frequency Ceiling Fan and Light Remote Control Kit
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| receiver color | black |
|---|---|
| remote control color | white and gray |
| Control Range | 10 |
Detail Description
Features:

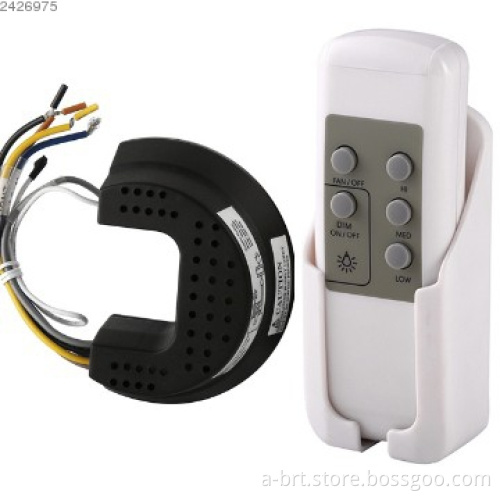

This unit includes a U-shaped receiver and a transmitter (remote control). Transmitter and receiver use radio frequency technology to communicate and work at 433.92MHz or 315MHz. The receiver fits well in the fan\'s canopy, installs horizontally above the ball attachment. It is designed for fans that vary their speeds by triac. It will work on almost all fans with regular light bulbs ONLY (incandescent) and not fluorescent bulbs or CFL (compact fluorescent) bulbs.
lFan Speed: High/Medium/Low
lCapacitance for fan speed: 4μF for Medium speed, 2μF for Low speed;
lLight function: On/Off and increase/decrease brightness;
lLight turns on at last brightness;
lBoth the transmitter and receiver have 4 dip switches to avoid control interference from different remote controls. They must have the exactly same dip switch setting to work together.
lBattery size for remote control: 6F22 9 Volts (not included)
Specifications:
This unit includes a U-shaped receiver and a transmitter (remote control). Transmitter and receiver use radio frequency technology to communicate and work at 433.92MHz or 315MHz. The receiver fits well in the fan\'s canopy, installs horizontally above the ball attachment. It is designed for fans that vary their speeds by triac. It will work on almost all fans with regular light bulbs ONLY (incandescent) and not fluorescent bulbs or CFL (compact fluorescent) bulbs.
lFan Speed: High/Medium/Low
lCapacitance for fan speed: 4μF for Medium speed, 2μF for Low speed;
lLight function: On/Off and increase/decrease brightness;
lLight turns on at last brightness;
lBoth the transmitter and receiver have 4 dip switches to avoid control interference from different remote controls. They must have the exactly same dip switch setting to work together.
lBattery size for remote control: 6F22 9 Volts (not included)
Specifications:
| Voltage | 220～240V(50Hz/60Hz) | Operating temperature | 0℃～55℃ |
| Light load | 300W(Maximum) | Relative humidity | Non-condensing 20-90% |
| Motor load | 100W(maximum) | Working distance | RF,≥10m |
| Receiver dimension | Radius（60mm） | Receiver weight | 101g |
| Transmitter dimension | 138*49*23mm | Transmitter weight | 55g |
Additional Information
| Payment Terms | L/C, T/T |
|---|---|
| Minimum Order | 100 |
| Lead Time / Delivery Time | 30 Day(s) |
| Sample Available | YES |
| FOB Port | Shenzhen |
| Target Market(s) | Eastern Europe, Middle East, Oceania, Western & Southern Europe |
