Hot sale white paint ultrathin CE 60W led ceiling panels

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Colors	R/G/B/Y/W/WW
LED quantity	320 pieces 2835 SMD
Beam angle	120 degree
Net weight	5030g
Warranty	2 years
Voltage	90-260V
Material	Aluminum, PC, PMMA
Application	Airport, Bathroom, Bathroom Room, Bedroom, Car Park, Church, Cinema, Gallery, Garage, Hospital, Hotel, Kitchen, Meeting Room, Museum, Office, Restaurant, School, Shopping Mall, Sitting Room
Light Source	LED

Detail Description

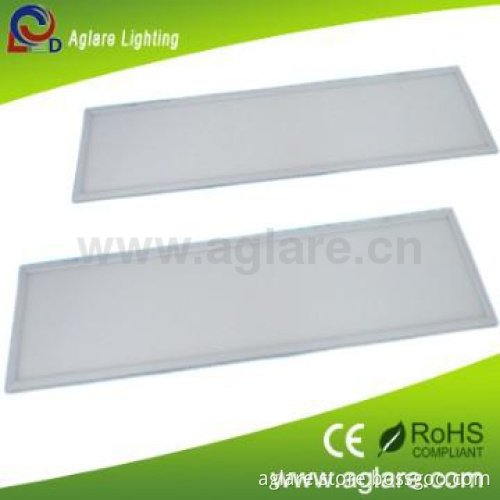

Hot sale white paint ultrathin CE 60W led ceiling panel

Description:

D-series LED panel light have 5 products with 15W,30W,60W total power consumption,the sizes are 300x300,300x600,300x1200,600x600,600x1200.the advantages of LED panel light are high luminous efficiency, 30,000 hours long lifespan,Solid light source and easy for transportation.LED panel light widely used in indoor lighting and home lighting.

YJ-PD300X300-2835W80

ø output power ::15W

ø LED quantity :80pcs

ø Luminous intensity :487.5LM

ø Maximum size :L*W=300*300MM

ø Net weight :1370g

YJ-PD300X600-2835W160
ø output power ::30W

ø LED quantity :160pcs

ø Luminous intensity :975LM

ø Maximum size :L*W=600*300MM

ø Net weight :2575g

YJ-PD300X1200-2835W320

ø output power ::60W

ø LED quantity :320pcs

ø Luminous intensity :3900LM

ø Maximum size :L*W=300*1200MM

ø Net weight :5030g

YJ-PD600X600-5730W160

ø output power ::30W

ø LED quantity :160pcs

ø Luminous intensity :1950LM

ø Maximum size :L*W=600*600MM

ø Net weight :4500g

YJ-PD600X1200-2835W320

ø output power ::60W

ø LED quantity :320pcs

ø Luminous intensity :1950LM

ø Maximum size :L*W=600*1200MM

ø Net weight :9200g

The advantage of LED light:

The advantage of LED light:

1. No UV-IR radiation. Green products, no harm to human beings.

2. No heavy metal material (such as mercury, cadmium), friendly to the environment.

3. Good heat output, 90% high efficiency.

4. High luminous efficiency, 30,000 hours long lifespan.

5. Solid light source. Easy for transportation.

6. Low voltage and constant current operation, safe for installation and operation, No strobe and glare

light, reduce visual tiredness.

Product photoelectric parameters:

Type	input voltage	PF	Output wattage	Output Luminous Flux	beam angle	product size (MM)	Net weight (including driver)
YJ-PD300X300-2835W80	AC90-260V	0.7/0.9	15W	487.5LM	120°	LW=300300	1370g
YJ-PD300X600-2835W160	AC90-260V	0.7/0.9	30W	975LM	120°	LW=600300	2575g
YJ-PD300X1200-2835W320	AC90-260V	0.7/0.9	60W	3900LM	120°	LW=3001200	5030g
YJ-PD600X600-2835W160	AC90-260V	0.7/0.9	30W	1950LM	120°	LW=600600	4500g
YJ-PD600X1200-2835W320	AC90-260V	0.7/0.9	60W	3900LM	120°	LW=6001200	9200g

Colors:

YJ-PD300X1200-2835W320	R	wavelength :620-635nm
YJ-PD300X1200-2835W320	G	wavelength :515-530nm
YJ-PD300X1200-2835W320	B	wavelength :460-475nm
YJ-PD300X1200-2835W320	Y	wavelength :585-595nm
YJ-PD300X1200-2835W320	WW	Color Temperature :3000-3500k
YJ-PD300X1200-2835W320	W	Color Temperature :6000-6500k

Product size(mm):

Installation instructions:

Package Information:

Packages may be adjusted according to different order quantities.

Net (g)	Gross (kg)	Carton1 Size (CM)	Carton2 Size (CM)	Q’ty/Carton 1
2575	13.87	68633362	700340340	5

Net (g)

Gross (kg)

Carton1 Size

(CM)

Carton2 Size

(CM)

Q’ty/Carton 1

2575

13.87

686*333*62

700*340*340

Cautions:

1. Suitable for indoor application. Do not use this product on outdoor or humid environment.

2. -20 to 40 ° C operation temperature. -30 to 60 ° C storage temperature. Use and store lamps under related temperature.

3. Clean the lamp surface regularly with dry cloth If the environment has dust pollution.

4. Contact supplier within warranty period if there are any failure problems. Do not disassemble product without permission. Otherwise no warranty.

Application pictires

Suitble for market place, hotel, showroom, museum and indoor lighting place.

About us:

Certificate

HK fair in April

Additional Information

Payment Terms	T/T, Western Union, Paypal
Minimum Order	50
Lead Time / Delivery Time	10 Day(s)
Sample Available	YES
Delivery Details	5-7 days for sample, 10-15days for delivery
FOB Port	Shenzhen
Loading Info	DHL, UPS, TNT, FEDEX and other forwarders
Packing Info	Cartons
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
