3528SMD carousel fun led landscape lights E10

3528SMD carousel fun led landscape lights E10

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Colors	W/WW/CW/R/G/B/Y
Operating condition	DC15mA
LED quantity	8 pieces 3528 SMD LED
Power	0.45W
Voltage	AC12/24/60V
Light Source	LED
Application	Park
Material	PVC
IP	IP44
Voltage	24V

Detail Description

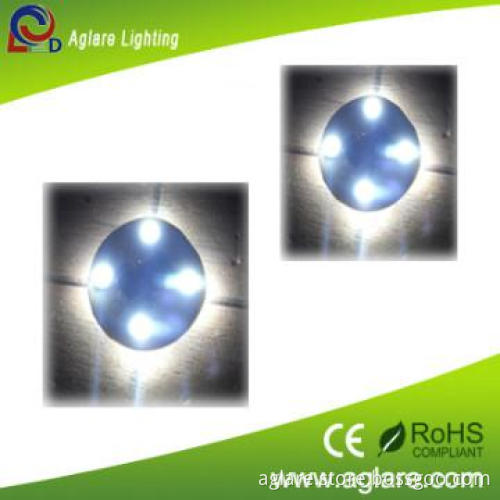

3528SMD carousel fun led landscape lights E10

Description:

1. Amusement LED Lamp
2. LED quantity: 8 pieces
3. LED type: 1210 SMD LED

4. Operating condition: DC15mA
5. Input voltage: AC12V
6. Weight: 6.5g
7 .Total power consumption: 0.45W
8. Waterproof degree: IP44
9. Colors available: white, warm white, cool white, red, green, blue, yellow

Parameter:

Part Number	Emitting Color	Input Voltage	Wattage	Waterproof Degree	LED Quantity	Luminous Intensity(Lm)	Net Weight
MIN	MAX
YJLED-013-SV8R	Red	AC12/ 24/60V	0.45W	IP44	8pcs	7.5	12	6.2g
YJLED-013-SV8G	Green	0.45W	IP44	8pcs	27	36	6.2g
YJLED-013-SV8B	Blue	0.45W	IP44	8pcs	7.5	12	6.2g
YJLED-013-SV8Y	Yellow	0.45W	IP44	8pcs	7.5	11	6.2g
YJLED-013-SV8W	Pure White	0.45W	IP44	8pcs	45	65	6.2g
YJLED-013-SV8WW	Warm White	0.45W	IP44	8pcs	36	45	6.2g

Charateristic:

Electro-Optical characteristics ( Pure White ) (Ta=25°C)
Parameter	Test Condition	Symbol	Value	Unit
Min	Typ	Max
Color temperature	If=15mA	peak	5000		6500	k
Forward voltage	If=15mA	VF	3.0		3.6	V
Power consumption	If=15mA	P	0.35	0.45	0.55	W
Luminous intensity	If=15mA	Iv	45	55	65	LM
Useful life	If=15mA		30000		50000	H

Lumen decrease:

Operating time ( hours )	Lumen decrease [%]
1000	8
5000	15
10000	18

Package information:

Net (g)	Gross (kg)	Foam board Size (cm)	Q\'ty/Foam board (pcs)	Carton1 Size (cm)	Q\'ty/Carton1 (pcs)
14.2	17.5	6028.83.7	99	603035	990

Features:

a. Energy-saving: low power consumption, the same lighting efficiency than traditional bulb to save electricity 75-80%.

b. CE & RoHS compliance and no UV, high environmental protection, high efficiency and excellent energy saving.

c. Lamps optical attenuation: 1,000 hours attenuation less than 5%, Long-term use without the need for replacement, reduce artificial without cost.

Application:

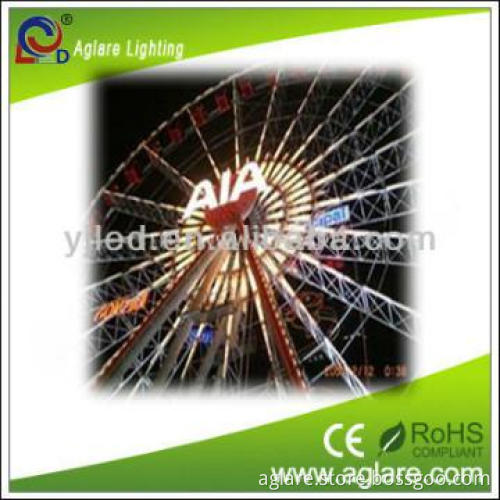

Amusement led light is widely used in Ferris wheel, park, theme park, carnival, party, super market, hotel, tavern, night club, disco hall, karaoke room, coffee house, bank, meeting room, exhibition hall, exhibition wardrobe, show window, living house, Boat lighting, accent lighting, display case lighting, Under cabinet lighting and Art lighting.

Our certifications:

Produce machinery:

Machine name	Brand & Model NO	Quantity	Numeber of years used
Die bonding	ssp3112,JF-II	2.00	4.00
Wiring bonding	PD-305D	2.00	4.00
Glue sealing machine	PF9901	2.00	4.00
Oven	No Information	6.00	4.00
LED sorting machine	Th2683	1.00	4.00
LED braiding machine	LW2683	1.00	4.00
Solder paste printing machine	LW2670A	1.00	4.00
SMT machine	LW-2811CLCR	2.00	4.00
Reflow soldering	IT8512B	1.00	4.00

Test machinery:

Machine name	Brand & Model NO	Quantity	Numer of years used
LED Photometric Colorimetric and Electric tester	SSP3112,JF-II	2	4
DC Power Supply	PD-305D	5	4
Digital Power Meter	PF9901	5	4
Led Aging Tester	No Information	2	4
Insulation Resistance Test Instrument	TH2683	1	4
Withstand Voltage Test Instrument	LW2670A	1	4
Digital Electrical Bridge	LW-2811CLCR	1	4
Electronic load	IT8512B	1	4

After-sales service:

All products are guaranteed to use in one year. Under the right and normal using condition, quality warranty is based on correct conservation, assemblage, and maintenance. As incorrect usage, and disobeying product operation, it’s not guaranteed. To the problem within promised time, “Aglare” will solve it by repair, substitute accessories or replacement for your option. Upon exceeding the promised time, there will be material and maintenance fees to be paid by customers.

About us:

HK fair in April:

Additional Information

Payment Terms	T/T, Western Union, Paypal
Minimum Order	100
Lead Time / Delivery Time	7 Day(s)
Sample Available	YES
Delivery Details	8-15days after got the payment
FOB Port	Shenzhen
Loading Info	UPS,DHL,T&T,FEDEX,etc
Packing Info	cartons
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
