Clear Cover 20W T8 LED Tube Light TUV/CE/RoHS (lts12)
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Life | 40000hrs |
|---|---|
| Package | Yes |
| Tube Diameter | T8 |
| Length | 120cm |
| Lamp Base | G13 |
| Power | 20w |
| Color Tones | Cool Color |
| Illuminant | LEDs |
Detail Description
Product Type |
Dimension |
Power |
Input voltage |
Color |
Color temperature |
Luminous flux |
|
LTS-T8W3C08-0 |
Φ26×L602mm |
8W |
AC86V-265V 50/60Hz |
Warm White |
3000 ±300k |
600-700lm |
|
LTS-T8N4E13-0 |
Φ26×L902mm |
13W |
AC86V-265V 50/60Hz |
Natural light |
4000 ±400k |
1100-1200lm |
|
LTS-T8C5B15-0 |
Φ26×L1212mm |
15W |
AC86V-265V 50/60Hz |
Cool White |
5700 ±570k |
1200-1300lm |
|
LTS-T8W3B18-0 |
Φ26×L1212mm |
18W |
AC86V-265V 50/60Hz |
Warm White |
3000 ±300k |
1300-1400lm |
|
LTS-T8N4B20-0 |
Φ26×L1212mm |
20W |
AC86V-265V 50/60Hz |
Natural light |
4000 ±400k |
1600-1700lm |
|
LTS-T8C5A23-0 |
Φ26×L1513mm |
23W |
AC86V-265V 50/60Hz |
Cool White |
5700 ±570k |
2000-2100lm |
Main Feature

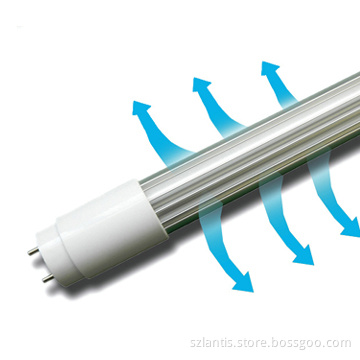

1. Fin shape and aluminum alloy design, which has guaranteed the heat dissipation.
2. Power supply is designed by ourselves, which not only guarantee the quality of tube but aslo the compatibility with the SMD(We have our own SMT machine).
3. Location of power supply: We put the power supply on the PCB board not hide below it, which has guaranteed the light effect of tube, without dark area.
4. Viewing angle: ≥180°because of the location of power supply, so we can achieve the viewing angle of 180°.
5. PCB Board: We use the pcb board whose back is copper not aluminum, which has assured better heat conduction than aluminum. Besides, the pcb board has passed the UL certification, so the quality must be very good.
6. Chips: Everlight from Taiwan(3020), much better than Epistar(3528).
Installation
1. Replace the conventional fluorescent tube T8, T10.they apply to inductive lamp fixture
2. Take out the starter, take down conventional fluorescent tube T8, T10.
3. Put on LED Tube into the former bracket.
4. Connect the input voltage AC 85-265V.
5. For 277V.300V, we will match another style power driving.
Additional Information
| Payment Terms | L/C, T/T, Others |
|---|---|
| Minimum Order | 10PCS |
| Lead Time / Delivery Time | 25 Day(s) |
| Sample Available | YES |
| Delivery Details | FOB |
| FOB Port | Shenzhen |
| Loading Info | By sea, air or express |
| Packing Info | 600mm 70pcs/ctn: 127x25x20cm, 1200mm 35pcs/ctn: 127x25x20cm 1500mm 35pcs /ctn: 157x25x20cm |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
