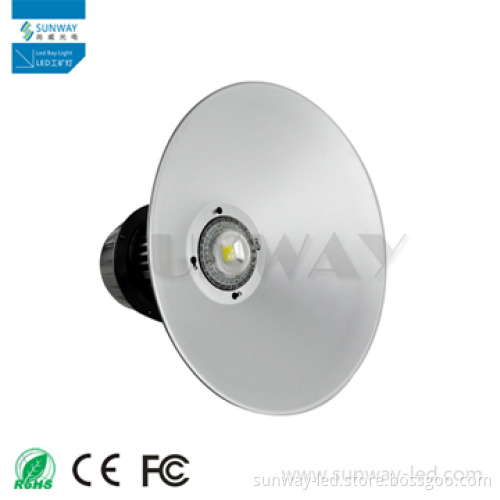

IP65 High Power Bridgelux LED High Bay Light

IP65 High Power Bridgelux LED High Bay Light

Specification(SW-HL515-C120W):

Input voltage	AC85V-265V
frequency	50HZ-60HZ
Total harmonic distortion	≤9%
Power factor	＞0.98
Voltage for the led	DC30-36V
Led Q’TY	1PC
Total power of the led	120W
Total power for the light	123W
LED light effect	120-130LM/W
Initial lumens	Warm white  14100LM
Pure white  14908LM
Cool white  15200LM
Light efficiency	Above 90%
Average luminance	Height:8M	53LUX
Height:10M	41LUX
Height:12M	34LUX
Light spot	Height:6M	15*32M rectangle
Height:8M	15*36M rectangle
Height:10M	15*38M rectangle
Evenness degree	＞0.6
Related color temperature	ww.	2700K-3900K
Pw.	3900K-6000K
Cw.	6000K-7000K
Color rendering index	ww	Ra＞78
	pw，cw	Ra＞85
Light distribution curve	Similar the batwing/rectangle light spot
Light design	LED+ reflector secondary light distribution
Warming node of the led	≤75℃
Operation temperature	-40℃——+53℃
Storage temperature	-25℃——+65℃
Grade of protection	IP65
Life-span of the led	＞50000H
Connecting wire for the driver	brown	L live line
blue	N neutral line
Yellow or yellow-green	G earth line
Color for cover of the light socket	black，and silver for potions
certifications	ETL EMC TUV CE ROHS

Special Feature :
 1. Quality Waterproof Driver with two-year warranty(IP65 Meanwell driver)
A, High EMC,no interfere
B, Power factor>0.95
C, Power Efficiency>90%

2. High-performance Original Brigelux LED and perfect wiring design
Even if one led failed, the remaining LEDs will still work.


3, Safety
A, CE, RoHS, PSE, TUV
B, IP65 test pass
C, Safe voltage output: 36VDC Max output
D, 4000V Hi-pot test pass

4, Low Light Loss
The light source is the low light loss and high-bright LED, in which the loss is less than 5% for every 10,000 hours. The aluminum back-side housing performs an excellent heat dissipation, which guarantees a lower junction temperature of the LED, thus slowing down light loss.

5, Environment-Friendly
While working, no ultraviolet light and infrared light radiation. And does not contain any hazardous substance, such as Lead and Mercury.

6, Anti-vibration
Solid-state device. Can withstand Moderate vibrations

7, Warranty Policy
2 years warranty with 20,000 switch cycles (on/off switching).

Apllication:



Trade Terms:
1.Payment: T/T, 30% deposits before production, 70% balance to be paid before deliverying (Western Union or are welcomed)
2.Reseach and develop by ourselves with good material.
3. Sample can be delivered in 3days
4. MOQ: 1pcs




Our service:
1.Your inquiry related to our products or prices will be replied in 24hours.
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM, any your customized lightings we can help you to design and put into product.
