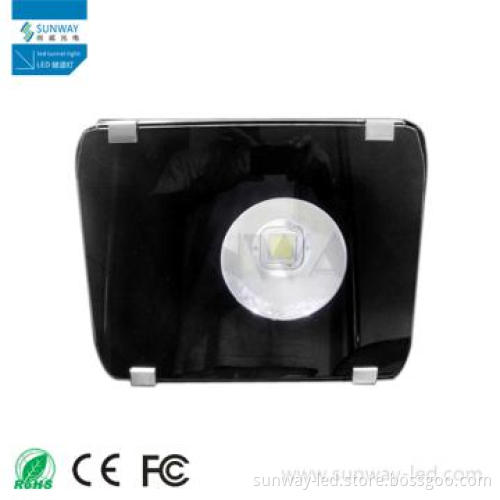

IP65 High Power Bridgelux Tunnel Lights

IP65 High Power Bridgelux Tunnel Lights

Specification:

	Item
SW-TL365-C50W	SW-TL365-C60W	SW-TL365-C70W	SW-TL365-C80W
Electrical parameter	LED chip	Bridgelux	Bridgelux	Bridgelux	Bridgelux
Input voltage(V)	85-265Vac	85-265Vac	85-265Vac	85-265Vac
Frequency	50-60Hz	50-60Hz	50-60Hz	50-60Hz
Rated Power	50W	60W	70W	80W
Power factor	≥0.95	≥0.95	≥0.95	≥0.95
LED power	50W	60W	70W	80W
Light parameter	Luminous flux(lm)	6000-6500	7200-7800	8400-9100	9600-10400
Central illuminance	8lux(6M)	11lux(6M)	13lux(6M)	23lux(6M)
Valid illuminate scope	10 X11M(6M)	12 X13 M(6M)	15 X14 M(6M)	9 X9 M(6M)
Color temperature	2700-7000k	2700-7000k	2700-7000k	2700-7000k
CRI	70-80Ra	70-80Ra	70-80Ra	70-80Ra
Beam Angle	120°	120°	120°	120°
Comprehensive parameter	Material	aluminium alloy	aluminium alloy	aluminium alloy	aluminium alloy
Working temperature	-30°C ~ 45°C	-30°C ~ 45°C	-30°C ~ 45°C	-30°C ~ 45°C
Life span	≥5000 hours	≥5000 hours	≥5000 hours	≥5000 hours
Protection grade	IP65	IP65	IP65	IP65
Physical parameter	Size	115*86*86mm	225*186*130mm	225*186*130mm	286*236*172mm
Package	138×98×98mm	238×198×142mm	238×198×142mm	294×250×162mm
Net weight	0.6kgs	2.3kgs	2.4kgs	4.2kgs
Gross weight	0.8kgs	2.5kgs	2.6kgs	4.5kgs

Special Feature :
 1. Quality Waterproof Driver with two-year warranty(IP65 Meanwell driver)
A, High EMC,no interfere
B, Power factor>0.95
C, Power Efficiency>90%

2. High-performance Original Brigelux LED and perfect wiring design
Even if one led failed, the remaining LEDs will still work.

3, Safety
A, CE, RoHS, PSE, TUV
B, IP65 test pass
C, Safe voltage output: 36VDC Max output
D, 4000V Hi-pot test pass

4, Low Light Loss
The light source is the low light loss and high-bright LED, in which the loss is less than 5% for every 10,000 hours. The aluminum back-side housing performs an excellent heat dissipation, which guarantees a lower junction temperature of the LED, thus slowing down light loss.

5, Environment-Friendly
While working, no ultraviolet light and infrared light radiation. And does not contain any hazardous substance, such as Lead and Mercury.

6, Anti-vibration
Solid-state device. Can withstand Moderate vibrations

7, Warranty Policy
2 years warranty with 20,000 switch cycles (on/off switching).
