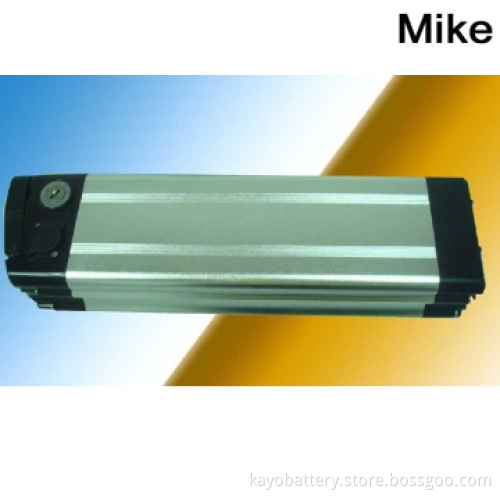

48V Lithium battery pack, Electric bicycle battery 48V 10Ah with Al case, Charger

1. Model: KY-4810-A with 48V 10Ah

2. Specification:

48V 10Ah, 20A discharge current.

Dimension: 389x76x110mm(HxWxL)

Weight: 6.5kg

including to Charger, PCB, BMS.

No	Item	General Parameter	Remark
1	Rated Capacity	10Ah	Standard discharge(2A) after standard charge
2	Minimal Rated Capacity	10Ah	Standard discharge(2A) after standard charge
3	Nominal Voltage	48V	Mean Operation Voltage
4	Cycle Life	Higher than 70% of the Initial Capacities of the Cells	Carry out 500cycle Standard discharge(2A) after standard charge Discharge: 2Ah to 39V Rest Time between charge/discharge : 30min. Temperature:20+/-5Degrees Celsius
5	Voltage at end of Discharge	39V	Discharge Cut-off Voltage
6	Charging Voltage	54.6V
7	Standard charge	2A CC(constant current)charge to 54.6V, then CV(constant voltage 54.6V)charge till charge current decline to ≤0.01C	Charge time : Approx 6h
8	Standard discharge	Constant current 2A end voltage 39V
9	Maximum Continuous Charge Current	1C(15A)
10	Maximum Continuous Discharge Current	2C(20A)
11	Operation Temperature Range	Charge: 0~45Degrees Celsius	60+/-25%R.H. Bare Cell
		Discharge: -10~60Degrees Celsius
12	Storage Temperature Range	Less than 1 year : -20~25Degrees Celsius	60+/-25%R.H. at the shipment state
		Less than 3 months: -20~40Degrees Celsius
13	Weight	Approx: 6.5Kg
14	Pack Dimension	High:389mm
		Width: 76mm
		Long: 110mm

3. Performance And Test Conditions

3.1 Standard Test Conditions

Test should be conducted with new batteries within one week after shipment from our factory and the cells shall not be cycled more than five times before the test. Unless otherwise specified, test and measurement shall be done under temperature of 20+/-5Degrees Celsius and relative humidity of 45~85%. If it is judged that the test results are not affected by such conditions, the tests may be conducted at temperature 15~30Degrees Celsius and humidity 25~85%RH.

3.2 Measuring Instrument or Apparatus

3.2.1 Dimension Measuring Instrument

The dimension measurement shall be implemented by instruments with equal or more precision scale of 0.01mm.

3.2.2 Voltmeter

Standard class specified in the national standard or more sensitive class having inner impedance more than 10kΩ/V

3.2.3 Ammeter

Standard class specified in the national standard or more sensitive class. Total external resistance including ammeter and wire is less than 0.01Ω.

3.2.4 Impedance Meter

Impedance shall be measured by a sinusoidal alternating current method (1kHz LCR meter).

3.3 Standard Charge\\Discharge

3.3.1 Standard Charge: 2A

Charging shall consist of charging at a 2A constant current rate until the cell reaches 29.4V. The cell shall then be charged at constant voltage of 42 volts while tapering the charge current. Charging shall be terminated when the charging current has tapered to 0.01 C5A. Charge time: Approx 4.5h, The cell shall demonstrate no permanent degradation when charged between 0 and 45 Degrees Celsius.

3.3.2 Standard Discharge: 2A

Cells shall be discharged at a constant current of 2A to 21Volts @ 20º ± 5C

3.3.3 If no otherwise specified, the rest time between Chare and Discharge amount to 30min.

4. Environmental and Safety

The cell is approved according UL 1642. This battery meets the requirements of Battery Directives and the battery parts are RoHS-Compliant.
