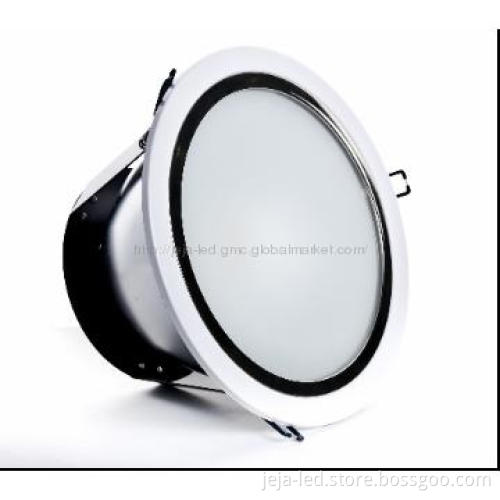

COB LED Down light 30W with IES original files, direct factory sale

COB LED Down light 30W with IES original files, direct factory sale

Specs of optical	light source	30W warm white LED
luminous fluxΦ (lm)	2400lm
color temperature CCT(K)	3000±300
color render index(CRI)	≥80
beam angle 2θ1/2	74°
optical decay rate (%)	<3% within 3000 hours
service life (Hrs)	≥40000Hrs
Specs of electric	input voltage(V)	100 ~ 240 Vac
frequency scope (Hz)	50/60 Hz
input current (mA)	300mA (@ 110Vac)
total consumption (W)	30W
power factor (PF)	0.95
starting time (S)	≤1.2 S (@ 110Vac)
withstand voltage	3000Vac/1min
Specs of structure	material	aluminium alloy die-casting
dimension(mm)	φ227mm*124mm
installation	hole size 205mm
NW. (kg)	0.926Kg
proof class (IP)	for indoor use
Other specs	working temperature/humidity	-25°C ~ 50°C,10% ~ 90% R.H.
storage temperature/humidity	-40°C ~ 85°C,0% ~ 95% R.H.
certificate	CE  CCC
environmental protection	RoHS

Features of COB LED Down light 30W:
1. Long lifespan: ≥ 40000 hours
2. Multi-chip integrated LED
3. Energy & cost saving
4. Maintenance free
5. Environment friendly
6. Dimmable synchronistically

Applications:
It is applied to the ceiling of the musuem, art gallery, office building, hall, hotel, club, etc.

Services:
1. OEM & ODM customized services
2. Fast sample delivery
3. 2 year warranty
