SMD LED Module Light for Decoration CE RoHS Approved

SMD LED Module Light for Decoration CE RoHS Approved

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

led quantity	3 pcs
beam angle	120 deg
led type	SMD5050
size	73134 mm
power	0.48w/pcs
Life	50000 hrs
IP	IP65
Color	Monochrome
Temperature	℃
Voltage	12V
Color Mode	Full-color Single Point of Control
Power	0.72W

Detail Description

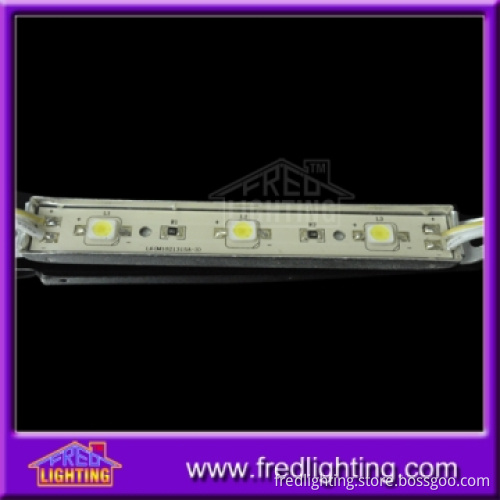

SMD5050 high power LED Module

FD-MD5050Q3-A

Description:

1. High brightness 3 pcs SMD5050

2. Red/Green/Blue/Yellow/White and any other single color available
3. Waterproof,IP68
4. Power: 0.72W
5. Certification: CE and RoHs

Features:

High brightness,adopting super bright SMD5050.
It is easy to install with 3M sticky back tape on the backside
Life span: 50,000 hours.
Emitting color: Red, Green, Blue, Yellow, Warm white, Pure white, Cool White or any other single color.
Working Voltage:DC 12VDC
Working Temperature: -40 ~ 50 °C.
Ambient Humidity: 0% ~ 100% relative humidity

Parameter

Item No	FD-MD5050W2-A	FD-MD5050W3-A	FD-MD5050W4-A
Product name	2leds 5050 led module	3leds 5050 led module	4pcs led 5050 module
Power	0.24W/0.48W	0.72W	0.72W
LED Quantity	2/3/4/5/6leds	2/3/4/5/6leds	2/3/4/5/6pcs
Voltage	DC12V	DC12V	DC12V
Luminous Flux	14LM(white)	14LM(white)	10LM
Color	Red/green/blue/yellow/white/warm white/RGB	Red/green/blue/yellow/white/warm white/RGB	Red/green/blue/yellow/white/warm white/RGB
Lighting angle	120°	120°	120°
Life-span	50,000 hours	50,000 hours	50,000 hours
Material	PC/Metal	PC/Metal	PC/Metal
IP rating	IP65/IP66/IP67/IP68	IP65/IP66/IP67/IP68	IP65/IP66/IP67/IP68
Led lighting source	SMD5050	5050SMD	SMD5050

Applications:
1) Sign Board Backlighting
2) Channel Letters Backlighting
3) Advertisement Signs Backlighting
4) Advertisement Light Boxes Backlighting
5) Commercial Sign Backlighting
6) Stage Backlighting
7) Message Display Backlighting

Dimension of FD-MD5050W4-A

Installation:

Additional Information

Payment Terms	T/T, Others
Minimum Order	100
Lead Time / Delivery Time	15 Day(s)
Sample Available	YES
Delivery Details	2-15 days after receipt payment
FOB Port	Shenzhen
Loading Info	by air or by sea
Packing Info	600pcs/caton, 8.2kg/carton. according to your requirement
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
