Basic Info

Product Description

Product Details

Basic Specification

Type	Megapixel ip camera
Resolution	720P(1280720) (640360) (320*180)
Image sensor	CMOS 1000,000 pixel
Memory card	Support up to 32G
Lens	3.6mm

Detail Description

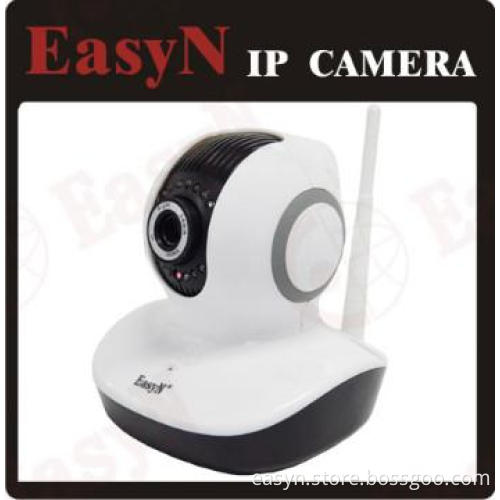

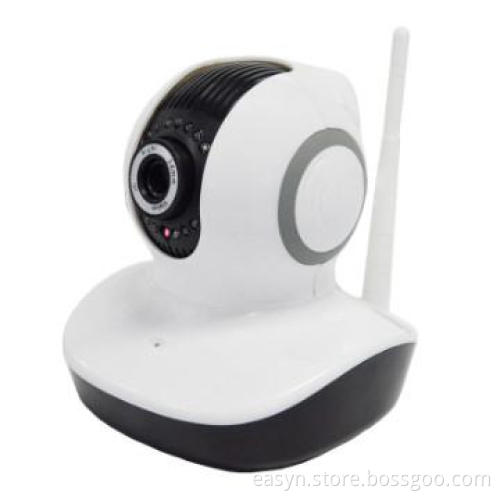

Built-in IR cut EasyN mini camera ip wireless

Features

Phone/iPad/Android/ PC

720P,support onvif

5dBi antenna indoor use

H.264 format, 3 video streams output

CMOS 1.0 mega pixel

Support up to 32G alarm trigger local memory

support two way audio

Pan/tilt: P=355°T=90°

IR distance: 10m

Built-in IR cut, no color cast

Detailed Specifications

Model:H3-V10D
Features	Superiority	Support monitor via computer and most of intelligent cellphone on the market(such as Android ,Iphone cellphone
mobile software	Provide special software for the iPhone or android mobile phone
DDNS(free)	Built in free DDNS system,like http://demo.easyn.hk, \'demo\' is serial code
CMS software	EasyN multi-window mangement software ,remote recording
System security	Supports three-level account, password, user multi-level authority management
Local memory	Support 32G TF card local memory,support alarm recording and picture memory, Support EasyN NVR
CPU	Operation system	Embedded Linux OS
Microcomputer processor	32Bit RSIC Embedded Processor
Network	Network interface	RJ-45 10/100Mb self-adaptable Ethernet slot
Protocol	Support HTTP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP
Wireless	Wifi802.11 b/g/n
IP mode	Dynamic IP address, static IP address
	Online visitor	Main stream support 5 visitors at the same time
Time stream support 6 visitors at the same time
Video	Compression format	H.264
Image sensor	CMOS 1000,000 pixel
Lens	Standard: 3.6mm
Frame rate	1-25fps
Resolution	720P(1280720) (640360) (320*180)
Image adjustment	Brightness, contrast, color saturation,chroma
WB, BLC	Auto
LUX	0.3LUX/F1.2
SNR	>48dB
Audio	Compression format	G.711/G.726
Input	Two way audio,one channel linear input(powered MIC) and output
Output	Audio output
PTZ	Motor	Built-in motor control
Rotation angle	Horizontal:355° vertical: 80°
PTZ Protocol	No
Nightvision	Filter switch	Can auto-switch automatically, without color cast
Nightvision	13Φ3 LED lights IR distance: 10m
Alarm	Input/output	1 channel RS485
Alarm detection	Motion detection
	Detection area	Support 4 detection area
Alarm notification	Email notification,picture, save the recording and picture to tf card
Others	Shape material	Plastic
Environment	Indoors
Power supply	DC5V 2A
Operating temperature	-10~50°C
Operating humidity	10%~90%RH
Dimension	Item size :120 x 120 x 130mm (LWH)
Package size:170 x170 x 170mm (LWH)
Weight	Item weight:340g (Note:for real products )
Package weight:700g
Accessories	Power adapter,CD,manual,warranty card,srews ,bracket ,antenna
System	System requirement	Microsoft WinXP,Vista ,win7, IE6.0,7.0,8.0,9.0, NET4.5,firefox,chrom
Certification	Certificate	ISO FCC CE RoHS

Product Display

Topologic graph

Packing list

Certificates

IE VIEW

Warranty Terms
EasyN provides 12 months warranty service on your product. The warranty card is an important document. You will need to present this warranty card to benefit from our warranty service.

Technical Support

** service hotline: 86 15012895482 8:00-20:00 (Beijing time)

** please send email to us for any inquiry, thanks

Additional Information

Payment Terms	L/C, T/T, Others
Minimum Order	5
Lead Time / Delivery Time	5 Day(s)
Sample Available	YES
Delivery Details	3 days for sample,7-20 days for bulk order
FOB Port	Shenzhen
Loading Info	EMS, DHL, UPS, FedEx, Air / Ocean shipping
Packing Info	Package size:170 x170 x 170mm (LWH)Package weight:700g
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
