Hot Indoor Wireless Full HD 3G Megapixel Security IP Camera With TF

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Model	H8-G10D
Color	White
Power supply	5V DC 2A
Nightvision	IR distance: 10 m
Accessories	Power adapter, CD, manual, bracket, screws, antenn

Detail Description

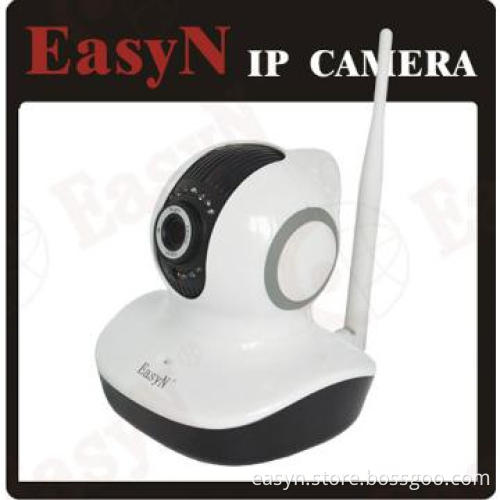

Hot Indoor Wireless Full HD 3G Megapixel Security IP Camera With TF

Features

1.WCDMA format

2.All in one solution

3. 3G megapixel security ip camera,indoor wireless camera

4. p2p cloud computering technology,full hd camera

5.no need to do port forwarding

6.easy login by ID, password

7. H.264 format

8.CMOS 1.0 mega pixel

9.Support up to 32G alarm trigger local memory

10.support two way audio

11.Pan/tilt: P=355° T=90°

Product Display:

model:H8-G10D
3G Network parameters (China Unicom 3G standard) H8-G10D-W
3G network standard	HSUPA/HSDPA/WCDMA/EDGE/GPRS/GSM
frequency	GSM/EDGE:900/1800/850/1900MHz WCDMA:2100/850/1900MHz
transmission rate	HSUPA:Downstream Rate 7.2Mbps Upstream Rate 5.76Mbps HSDPA:Downstream Rate 7.2Mbps Upstream Rate 384kbps WCDMA:Downstream Rate 384kbps Upstream Rate 384kbps
3G Video transmission channel	Video phone channel(CS) Network flow channel(PS)
Call filter and authentication	Support password authentication
SMS	support SMS Sending
Signal strength detection	support
Operators parameter configuration	Auto / manual
3G Network parameters (China Telecom 3G standard) H8-G10D-E
3G network standard	CDMA2000 1xEVDO
standard	EVDO:800/1900MHz
transmission rate	HSDPA: Upstream Rate 3.1Mbps Downstream Rate 1.8Mbps
3G Video transmission channel	Network flow channel(PS)
Call filter and authentication	Support password authentication
SMS	support SMS Sending
Signal strength detection	support
Operators parameter configuration	Auto / manual
3G Network parameters (China Mobile 3G standard) H8-G10D-T
3G network standard	TD-HSPA/TD-HSDPA/TD-SCDMA/EDGE
frequency	TD-SCDMA: 2010-2025/1880-1920MHz GSM/GPRS/EDGE 900/1800MHz
transmission rate	TD-HSPA: Downstream Rate 2.8Mbps Upstream Rate 2.2Mbps TD-HSDPA: Downstream Rate 2.8Mbps Upstream Rate 384Kbps
3G Video transmission channel	TD-HSPA/TD-HSDPA/TD-SCDMA/EDGE
Call filter and authentication	support, password authentication
SMS	Support SMS Sending
Signal strength detection	support
Operators parameter configuration	Auto / manual
Video parameters
Image sensor	1/4 inch OV9712 CMOS Image sensor
Pixel	MegaPixel
Resolution	WXGA:1280(H)×720(V)
Filter switch	auto-switch automatically, without color cast
Nightvision	3Φ13 LED lights, IR distance: 10 m
automatic diaphragm	support
Lens characteristics	Fixed focal:3.6mm/F1.2
LUX	0.1LUX/F1.2
SNR	≥48dB
Gain Control	Auto
WB	Auto
electronic shutter	Auto
Compression standard	H.264 BaseLine Profile 3.1
Compression Resolution	720p(1280×720)/VGA(640×480)/QVGA(320×240)
Frame rate	Main stream maximum frame rate 30fps,Time stream fixed 10fps
code rate	64K~2Mbps Code rate adjustable,Can set grade or self-adaptable
PTZ	Motor	Built-in motor control
Rotation angle	Horizontal: 355° vertical: 80°
Audio
Compression standard	AMR
code rate	12.2Kbps
Input	One channel,3.5mm JACK LINE IN Built-in high sensitivity MIC,distance 5m
Output	1 channel,3.5mm JACK SPEAK OUT
Video
file format	AVI file format
storage	Interior TF card, file system FAT,Max 32GB,standard configuration 4GB TF card external USB Hard Disk,file system FAT32,Max 2TB Prefer using external USB hard disk storage
Automatic cover	When available storage space is less than 10%(adjustable),Automatic delete history video files
24 hours or timing video	support,Can set week and time quantum plan, can save video files as every 10 minutes, 15 minutes, 30 minutes and 60 minutes
Manual	support,Terminal control the open video and end video, record time can be prolong
Alarm	support, Advance record live Video 5 s before the alarm trigger
search	support,according to time, type to search video files
online browse	support, Terminal software online browsing video files,Can playback,Key Frame browse,Drag time axis,Suspend ,etc.
management	support,Terminal software download,Batch Remove,A key to remove the video files
Alarm
Mobile detection	support,High, medium and low level 3 sensitivity Settings
SMS alarm	support
3G visual telephone	support
platform	support iPhone delivery alarm
video	support
Others
LAN	10BaseT/100BaseTX Ethernet,RJ45 interface
protocol	HTTP,NTP,VIF,DNS,DHCP,UPNP
WIFI	Wi-Fi 802.11g/n
Infrared compensation	Built-in IR light, distance 5 ~ 10 meters
LED indicator light	Red & blue indicator light,system light(red)and Network light(blue) Red light slow flash, System operate normally Red light flash three times and blue light flash once,shows 3G network connects normally. Red and blue light flash alternately,shows users are monitoring or upgrading firmware, restoring to the factory settings,should prohibit the interruption of power supply.
reset	Press on the reset button for 15s continuously to restore to the factory default settings.
WiFi Model Switch	switch between AP and STA mode,about 5s it takes effect.
SIM Card socket	Support,standard USIM card
Date & time	RTC real-time clock,support NTP Network time calibration and system time remote Settings
watchdog	Software and firmware Watchdog double protection
power supply	5V DC 2A
Power consumption	Less than 5W
Use environment	Temperature -10°C~+55°C,Humidity 10%~90%
Size	Item size:120 x 120 x 130mm (LWH)
Package size:170 x170 x 170mm (LWH)
Weight	Item Weight:340g (Note: for real products)
Package Weight:700g
Accessories	Power adapter, CD, manual, bracket, screws, antenna
Material	Plastic
Installation	Indoors, Ceiling or hanging

Packing list

Topologic graph

IE View

Phone View:

Certificates

Warranty Terms
EasyN provides 12 months warranty service on your product. The warranty card is an important document. You will need to present this warranty card to benefit from our warranty service.

Terms & conditions:
a) Free-of -Charge maintenance period of the product is 12 months. During this time, we can repair it for free (Damages not caused by misuse or vandalism). For reparation after guarantee period, a maintenance fee will be charged.
b) During the warranty period, for breakdown caused by misuse or other reasons that are out of the range of warranty, users can repair the products by showing this card. We will only charge for components.
c) When the products need maintenance, please hand in the warranty card together with the products to the manufacture or local distributor.
d) Opening the inside of the products and tearing up the sealing label privately is out of the warranty range.
e) We do not repair the damaged item after it has been modified or added other functions.

Under the following circumstances, the maintenance will be charged:
1. Period check, maintenance or change components due to normal attrition.
2. Damages due to crash, extrusion, artificial flooding, moisture or other personal reasons.
3. Damages due to floods, fire, lightning strike and other natural calamities or force majored incidents factors
4. Repaired item by non-authorized repair centers

Q&A

Technical Support

service hotline: 86 15012566923 8:00-20:00 (Beijing time)

please send email to us for any inquiry, thanks

Additional Information

Payment Terms	L/C, T/T, D/A, D/P, Credit Card, Western Union, Paypal
Minimum Order	1 PCS
Lead Time / Delivery Time	3 Day(s)
Sample Available	YES
Delivery Details	3 days for sample, 10 days for bulk order
FOB Port	Shenzhen
Loading Info	Fedex,DHL,UPS,EMS, by air /by sea
Packing Info	Item size:183mm x 75mm x 72mm (LWH),Standard export packing ip camera.
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
