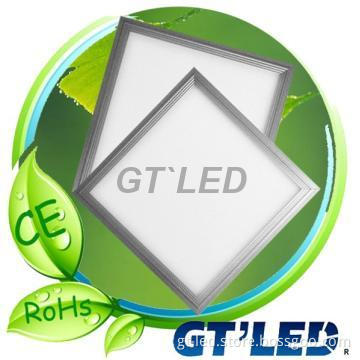

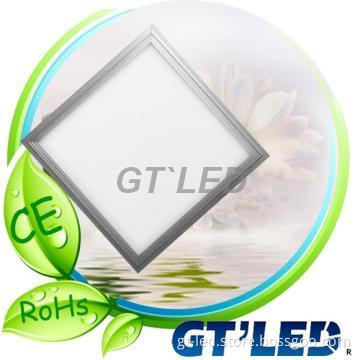

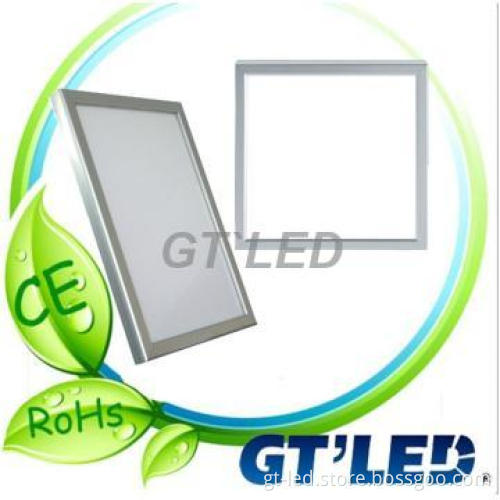

36W 600x600cm LED Panel Light

Model Number

GT-PL600

Base Types

2wires

Input Voltage

AC 85~265V

Work Frequency

50Hz/ 60Hz

Dimensions

600mm*600mm*20mm

Construction

Aluminium

Rated Wattage

36.0 W

Rated luminous flux

2300lm

Light efficacy

≥80lm/w

Beam angle

140Degree.

Rated lamp life time

≥30,000 Hours (MTBF)

Lamp power factor

≥0.60

Color Rendering Index

≥75

Color Temperature

2700K---8000K

Starting time

0.20ms(instant full light)

Lumen maintenance factor at the end of the nominal life

about 75%(±5%)

Number of switching cycles before premature lamp failure

≥1,000,000 Times (5,000 Times in Lab).

Efficiency

>=85%  (230VAC, 50Hz, FULL LOADED)

Working Condition

Temperature:

-20 to +50

Humidity

5% to 90%, Non-Condensing

Followed Standard

Safety:

EN60598 (Pass 3750Vac High Pot Test)

Circuit  Protection

1. Overcurrent Protection

2. Overpower Protection

3. Short Circuit Protection

4. Overheat Protection
