High Lumens T8 LED Tube Lamp with high quality

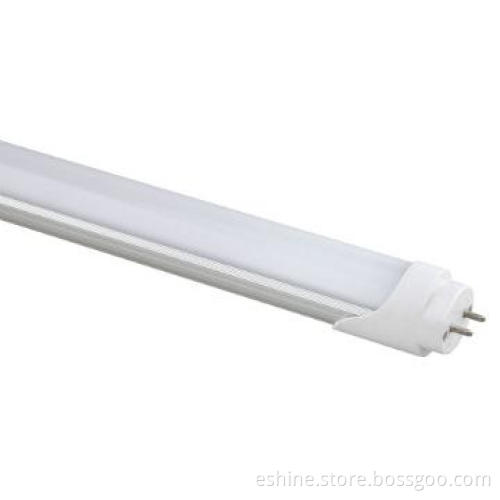

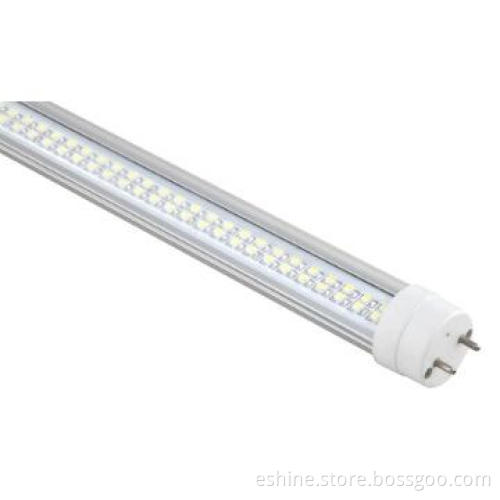

T8 LED Tube Light (SMD Tube)

LED tubes / LED tube lighting / LED tube light / t8 LED tube

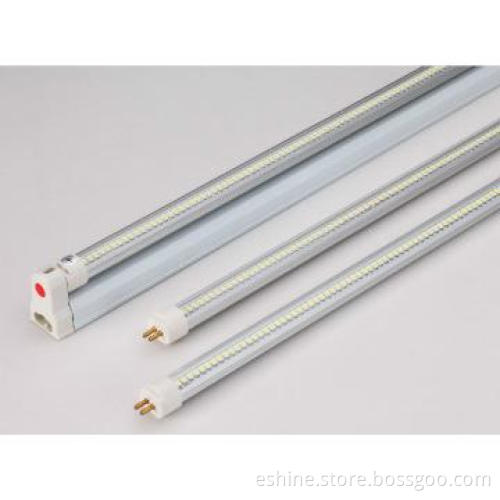

LED Tube Light ( T5/ T8 / T10 ); T8 LED Light 10W/15W/20W/25W

Outstanding characters:
1)Patented driver;
2)Aluminium layer in housing for better heat emission and difficult to be deformed
3)Full plastic end cap with screw to insure the safety in operating, low and convenience maintenance compare with the glue stick end cap.
4)No UV-light to avoid the insects being around.
5)No Mercury and other harmful components(RoHS approved)
6)No flicking or dazzing during operating
7)No RF interference
8)Energy can be saved 70%

LED Tube Light(W) (SMD Tube)Parameters

Dimension(mm): 1200X26 2Ft
Housing: AL housing transparent / translucence/ frosted cover available
LED Qty: 276PCS
Input Voltage: AC100~240V
Power Factor: >0.9
LM: >1400LM
Life Time (Hours ): >50,000Hours
Packing: Carton Size(cm): 127.5*23*17cm, 24PCS / carton


SMD3528 T8 LED Tube Specification

LED tubes / LED tube lighting / LED tube light / t8 LED tube
LED Tube Light ( T5/ T8 / T10 ); T8 LED Light 10W/15W/20W/25W

Absolute Maximum Rating at TA=25 ° C
Parameter Absolute Maximum Rating
Rated Input Voltage AC100V ~ AC270V
Operating Temperature -20 ~ +50 ° C
Storage Temperature -30 ~ +50 ° C
Housing Material Aluminum + PC cover
Power consumption 18W
LED Qty 276PCS
Luminous Flux(Typ) > 1400LM
Color temperature 2800K-7000K
CRI 75
Viewing angle 120°
Power Factor > 0.9
Life Time > 50000hours
Applications Local Lighting: House /Institutional building/Conference /Meeting room /Showroom /Showcase
2. Commercial Lighting: Super-market / Department store/shops
3. Public Place Lighting: School / University / Hospital / Hotel
