High Quality LED Street lights with Epistar Chips

High Quality LED Street lights with Epistar Chips​​, LED Street lights


Product Parameters for  road light

Material	Aluminum/PC board		LED type	High power LED
Power	168*1W	Lumen	15120lm
Color index (CRI)	≥80 Ra	Color Temperature(CCT)	2800-7500K
Input Voltage	85~265V AC	Beam angle	120°
IP grade	IP65	Humidity	5~95% R.H.
Light failure	<3% within 3000 Hrs	Working temperature	-20~55℃
Frequency (Hz)	47 to 63 Hz	Storage temperature	-40~85℃
Power factor	≥0.95	Life span	50,000 Hrs
Warranty	3 years	Fixture color	Silver Gray
Power Efficiency	>80%	Working Lifetime	50,000 Hrs 11-12hrs/day for 12 years
Warranty	3  years

Product featurers for LED road light:


Materials and features for LED road light:

Warm White/White road light
1.high heat conducting efficiency, low lumens depreciation, high light purity, and no double image
2.IP65 standard, free from water, dust and corrosion
3.Breadth working voltage, and constant flow and pressure
4.Environmental protection, no pollution of lead and Hg
5.The decorative effect is wonderful,surface adopted special process.
6.Warm White/White road light

Applications for LED road light:

Warm White/White road light:
Urban roads and highways, blocks, business center, industrial parks and other outdoor place


Technical parameters for LED road light:
1 Input Voltage: AC 85V-265V; LED type:High power led
2 Frequency (Hz) :47 to 63Hz, Color index (CRI) : ≥ 80Ra
3 Power factor (PF) : ≥ 0.95
4 IP65,Color range:2800 - 7500K,Warranty: 3 years
5 LED lifespan: 50,000 hours
6 Warm White/White road light


Extra directions for LED road light:
1.according to the requirements of the basement
2.the factory to manufacture Open door needs special spanner
3.When installation should guarantee the light body safely grounded
4.my company can provide various street lights according to the customer\'s pictures and Parameters
5.Warm White/White road light


The application and service of LED road light:

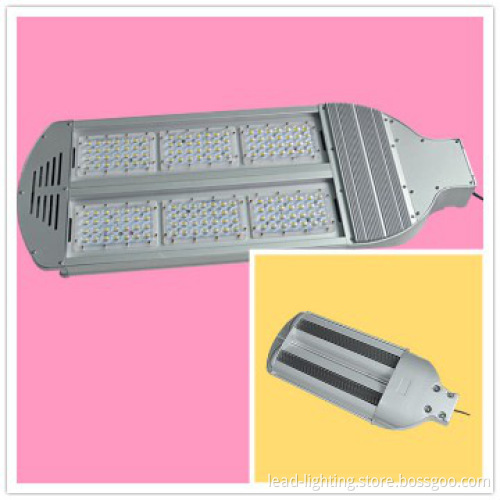

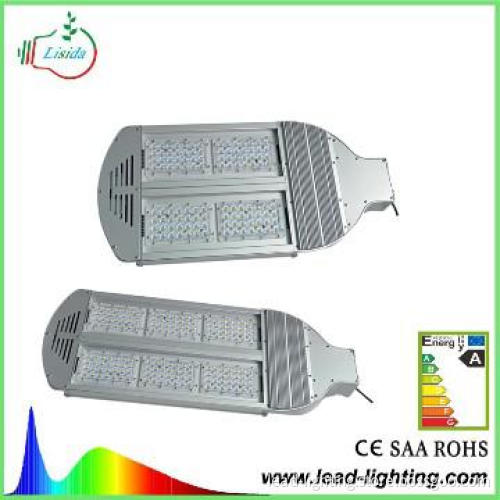

the picture for LED road light:
