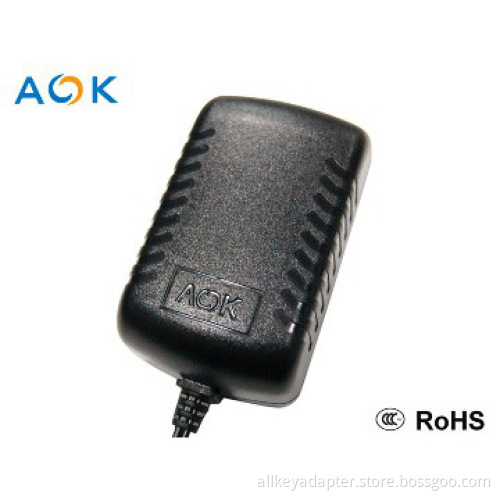

12W adapter with CCC certificates
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Dimension(mm) | 72*43*36mm |
|---|---|
| color | black /White |
| N.W/PCS | 70g |
| pcs/carton | 120pcs |
| G.W/cartor | 12.5KG |
| Adapter Zone Of Application | China |
| Switching Power Supplies Input Voltage | 100-240Vac |
| Zone Of Application | China |
| Usage | Electronic product, Game Player, Laptop, Linear, Mobile Phone, Other, Power, Switching |
| Connect Type | Plug In |
| Output Type | DC |
Detail Description
OEM ARE WELCOMED
Key Specifications for 12w Adapter:
Input: |
100-240v 50-60hz |
Output: |
5-16Vdc/0.1-2A |
Power: |
12W |
DC jack: |
5.5*2.1mm/5.5/2.5mm/4.0*1.75mm/3.0*1.35mm/3.5*1.3mm or as your request |
AC plug: |
SAA, ETL, GS, BS, PSE, CCC,PSE |
Protection : |
OVP,SCP,OLP |
Warranty: |
Full 12 months |
Color: |
Black/White |
MOQ: |
1000pcs |
Service: |
OEM/ODM |
Packaging: |
Pe bag,bubble bag,Carton,or as your requirements |
Delivery time: |
Within 15 working days( according to order quantity) |
Payment term: |
T/T |
Port: |
Shenzhen |
Certificates: |
SAA, ETL, GS, BS, PSE |
12W Series Related Power Supply Pictures:
Adapter Certificates Obtained:
CB Report (Global): IEC60950-1/IEC60065/IEC61558-2-7
CCC Certificate (China): GB4943-2001/GB8898
GS Certificate(Europe): EN60950-1/EN60065/EN61558-2-7
CE Certificate(Europe): EN55022, 55024/55013,55020/55014-1,2
BS Certificate(Britain): BS EN60950-1/BS EN60065
ETL Certificate(North America): UL60950-1/UL60065
SAA Certificate(Australia): AS/NZS 60950.1 AS/NZS 60065
KC Certificate(Korea): K60950-1/K60065
PSE Certificate(Japan): J60950-1/J60065
| MODEL NO. | OUTPUT(V) | OUTPUT(A) | TPUT(W) MAX |
| AK12G-XXXYYYWZ | 5.0-6.99 | 0.01-2.00 | 10W |
| AK12G-XXXYYYWZ | 7.0-9.99 | 0.01-1.42 | 10W |
| AK12G-XXXYYYWZ | 10.0-12.99 | 0.01-1.00 | 12W |
| AK12G-XXXYYYWZ | 13.0-16.0 | 0.01-0.77 | 10W |
Power Supply Reliability:
Burn in: 100% full load, 40±5℃, 4 hours
Leakage Current: 0.25mA Max. at 240Vac
Voltage Withstand (Between Primary and Secondary): 3000Vac,60S, 5mA Max.
Insulation Resistance (Between Primary and Secondary): 20MΩ min at 500V DC
MTBF: over 30,000 hours @ 25 ℃ with full load according to MIL-HDBK-217F.
AC Adapter Protection:
Short Circuit Protection: The power supply will recover automatically after fault removed
Over Current Protection: The power supply will recover automatically after fault current removed
Over Voltage Protection: The power supply will be shutdown when output voltage exceeds rated voltage by 150%-180%, and recover automatically after fault removed.
DC Power Supply Environmental Specifications:
Operating Temperature: 0º C to 40 º C at maximum load
Storage Temperature: -20 º C to 85 º C
Storage Relative Humidity: 5% to 95% non-condensing
Power Adapter Immunity:
Radiation: 61000-3-2
Electrostatic Discharge: 61000-4-2
Electromagnetic Field Radiation：61000-4-3
Instantaneous Discharging：61000-4-4
Surge：61000-4-5
Conducted Interference：61000-4-6
Voltage Interruption and Variation：61000-4-11
Switching Power Supply EMC Compliance:
North American Market FCC: FCC Part 15 Class B
European Market EMC: EN55013/55022 Class B
Chinese Market: GB9254-2008/GB17625.1-2003/GB13837-2003/GB17625.1-2003
Australian Market C-TICK: CISPR13/22 Class B
12W Wall Plug-in Adapter Package:
| Model No. | N.W/pcs | Pcs/Carton | G.W/Carton | Dimension (mm) | White Box (mm) |
| CCC UL PSE Certified Adapter | 66g | 120 | 8.5kg | 72*43*36 | L90*W50*H70 |
| GS KC Certified Adapter | 71g | 120 | 9.1kg | 72*43*49 | L90*W50*H70 |
| BS Certified Adapter | 76g | 120 | 13.2kg | 72*43*49 | L90*W50*H70 |
| SAA Certified Adapter | 70g | 120 | 12.5kg | 72*43*40 | L90*W50*H70 |
All-Key Factory Pictures:
External Power Supply Safety Certificates:
We are working with:
All-Key Tourism Pictures:
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 1000 |
| Lead Time / Delivery Time | 20 Day(s) |
| Sample Available | YES |
| Delivery Details | 20 working days after receiving the advance payment to All-Key account |
| FOB Port | Shenzhen |
| Loading Info | Ocean/Air shipping or DHL,UPS,FedEX, TNT etc. |
| Packing Info | Packing material based on Carton (designed by All-Key): Pe bag+white box+carton |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
