Excellent LED Street Light with CE/EMC/GS/ETL Certificated
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Chip | Nicha |
|---|---|
| Quality assurance | 3 year |
| IP | IP66 |
| Power Supply | Solar Energy |
| Application | Advertising Lighting, Architectural Lighting, Bridge, Highway, Highway Lighting, Park, Petrol Station, Pooling Lighting, Sport Lighting, Sport Yard, Square, Square Lighting |
| Energy | Solar Energy |
| Light Source | LED Lamp |
| Voltage | 90-260V |
Detail Description
Features
Solid-State life/Patent Hi-Flux LEDs are used
High reliability effciency driver with UL/CE certified
Aluminum extrusive heat sink enhances thermal conductivity
Unique optical lens design enable excellent efficacy and uniformity
Universal mounting hardware design suitable for post top and side entry
Tilting mechanism enable fast adjustment on tilt angles from 0 to 15 degree
in 5 degree step
Optional photocell prevents false operation
RoHS and WEEE compliant

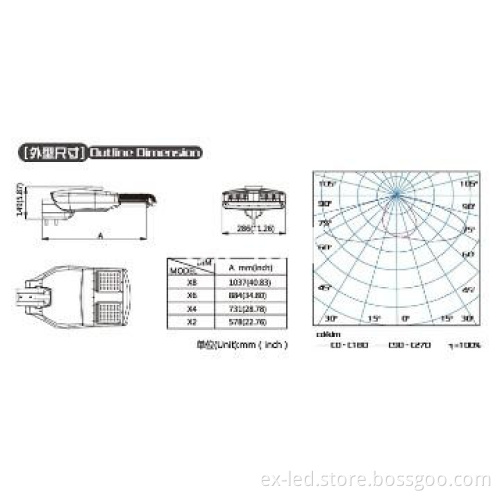

Outline Dimensions(Unit is in mm)
High Efficacy Models Specification
| Model No.TSL-4024-02TSL-4018-02TSL-2512-02TSL-1006-02Input Voltage90-260VacInput Frequency50/60 HzLED PowerConsumption*216W162W108W54WLuminaire PowerConsumption *245W184W123W61WPower Factor＞0.9Total Harmonic＜25%Surge Protection＞6.5KVTypical LuminaireInitial FluxWith/without Glass20,740lm15,550 lm10,370 lm5,180 lmTypical LuminaireEfficacy With/withoutGlass84 lm/WTypical ColorTemperature4800KTypical CRI70Light Distributionies file is available upon requestIngress RatingIP66OperatingTemperature-40℃～50℃Operating Humidity10%～95%RHStorage Temperature-40℃～85℃Weight16Kg13Kg10Kg8KgLight Modules*8*6*4*2 |
Project Reference
Ningbo Case
Ningbo Installation Time: Quantity: 800 Size: 170W/80W
Additional Information
| Payment Terms | T/T, D/P, Western Union, Paypal |
|---|---|
| Minimum Order | 10PCS |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | Payment: 30% deposit, the rest of the payment for goods before delivery. Our company will products sent to the fob port. |
| FOB Port | Shenzhen |
| Loading Info | We have shipment from shenzhen port (airport). Arrived at the place where you all shipping (air). |
| Packing Info | Packing: neutral packing (tin plastic + box)Small box size:L884*W286*149MM(1pcs)Big box size:L1768*W572*149MM(4pcs)Small box wight:13kg(1pcs)Big box wight:52kg(4pcs) |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
