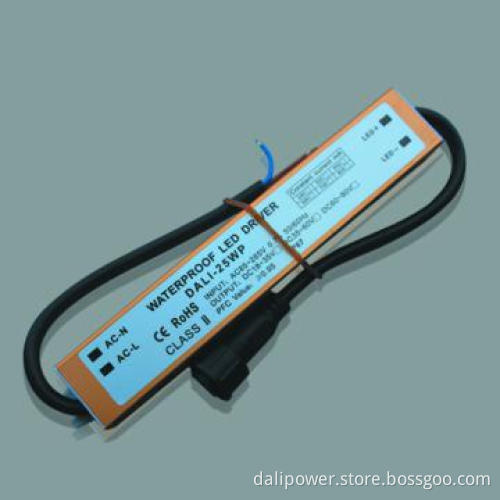

Isolated High Waterproof IP67 Driver 25W

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Input voltage	100-240V
Output voltage	30-50V
Output current	500mA
PF	0.95
Dimension	L200W30H20mm
Life	50000hr
Power	25W
Voltage	220V
Dimmable	No
IP	IP67

Detail Description

Isolated High IP Waterproof Driver 25W
Features:

Universal AC input and full range
Protections: OCP and SCP
Driving 10 to 25 pcs 1W LEDs in series
Dielectric strength: 3750kV AC, leakage current 5mA, 60 seconds
Built-in isolated constant current LED drivers
Low-noise and environment-friendly
Use highly efficient, steady and low-loss switch control chip
Burn-in test: 100% for at least 4 hours under working temperature of 40°C
Application: LED ceiling light, down light

Technical data:

Power: 25W
Input voltage range: 100-240V AC
Frequency: 50 to 60Hz
Power factor: 0.95 (typical)
Power efficiency: 90%
Output voltage: 30to 50VDC
Output current: 500mA (typical value), 520mA (maximum)
Operating temperature: -40 to 65°C
Humidity: 35 to 80% RH
MTBF calculation: up to 50,000 hours lifetime
Naked PCB or plastic housing
Dimension (LxWxH): L200mm*W30mm*H20mm
Weight: 200g

All trademarks shown here are for reference purposes only. They are the property of their respective owners, and we are not authorized to sell items bearing such trademarks

Additional Information

Payment Terms	T/T, L/C, Western Union
Minimum Order	1-99PCS
Lead Time / Delivery Time	5 Day(s)
Sample Available	YES
Delivery Details	FOB SHENZHEN
FOB Port	Shenzhen
Loading Info	Air or sea shipment,DHL and UPS EXPRESS
Packing Info	50-100
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
