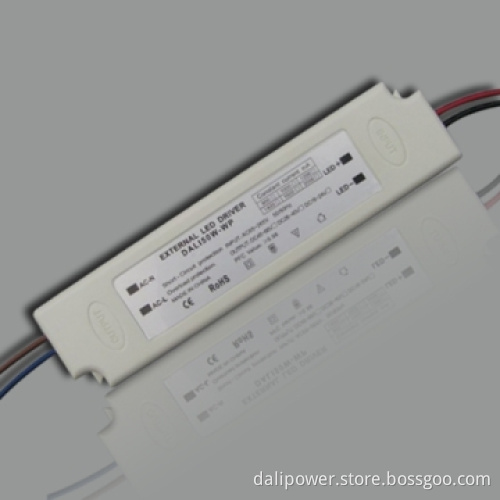

50W Waterproof LED External Driver

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Input voltage	100-240V
Output voltage	26-40V
Output current	1400mA
Dimension	L166W42H34mm
Power	50W
Life	50,000H
Dimmable	No

Detail Description

Features:

Universal AC input and full range
Protections: OCP and SCP
Dielectric strength: 3750V AC, leakage current 5mA, 60 seconds
External isolated constant current LED drivers
Low-noise and environment-friendly
Use highly efficient, steady and low-loss switch control chip
Burn-in test: 100% for at least 4 hours under working temperature of 40°C
Application: LED Down Lights and Ceiling Lights

Technical data:

Power: 50W
Input voltage range: 100 to 240V AC
Frequency: 50 to 60Hz
Power factor: 0.98 (typical)
Power efficiency: 90%
Output voltage: 26 to 40V DC
Output current: 1400mA (typical value), 1440mA (maximum)
Operating temperature: -40 to 65°C
Humidity: 35 to 80% RH
MTBF calculation: up to 50,000 hours lifetime
Naked PCB or plastic housing
Dimension (L x W x H): L166*W42*H34mm
Weight: 400g (for plastic housing)

All trademarks shown here are for reference purposes only. They are the property of their respective owners, and we are not authorized to sell items bearing such trademarks.

Additional Information

Payment Terms	L/C, T/T
Minimum Order	1-99PCS
Lead Time / Delivery Time	10 Day(s)
Sample Available	YES
Delivery Details	FOB SHENZHEN
FOB Port	Shenzhen
Loading Info	Air transport or sea shipment
Packing Info	50-100pcs
Target Market(s)	North America, Oceania, Eastern Europe, Latin America, Japan & Korea, Mainland China, Northern Europe, Middle East
