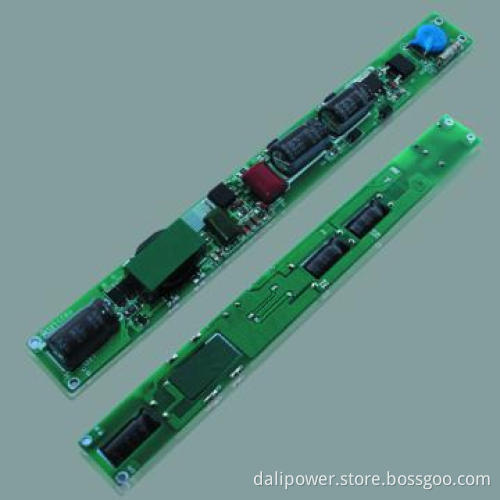

Dimmable High PF T8 Tube LED Driver 20W

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Input voltage	200-240V
Output voltage	30-80V
Output current	200mA
Dimension	L310mmW18mmH10mm
character	Dimmable 0.95PF non-isolated
Life	50,000hr
Power	3-20w
Voltage	220V
IP	IP23
Dimmable	Yes

Detail Description

Dimmable High PF T8 LED Tube Driver 20W
Features:

Dimmable LED tube drivers
Built-in non-isolated constant current power supply which is specifically developed for T8 LED tubes
Its design of a compact topologic circuit
Low harmonic, high efficiency, energy-saving and eco-friendly
The LED light doesn’t shake obviously seeing from the camera lens when you shoot a picture with a digital camera or a camera phone
Burn-in test: 100% for at least 4 hours under environment temperature of 40 degrees Celsius
Warranty: two years

Technical data:

Input voltage: 200 to 240V AC, 50/60Hz
Output voltage: 30V to 80V
Output current: 200mA
Output power: 6-20W (maximum)
Conversion efficiency: 88-90% (typical value)
Power factor: up to 0.95
Dielectric strength: 1.5KV AC
Leakage current: 5mA, 60 seconds
Protective function: open and short circuit protection
Operating temperature range: -20 to 65 degrees Celsius
Humidity: 35 to 80% RH
MTBF calculation: up to 50,000 hours lifespan
Mechanical specification appearance:
Naked PCB or plastic housing
Weight: 70g
Dimension:L310mm*W18mm*H10mm

All trademarks shown here are for reference purposes only. They are the property of their respective owners, and we are not authorized to sell items bearing such trademarks.

Additional Information

Payment Terms	T/T, L/C, Western Union
Minimum Order	1-99PCS
Lead Time / Delivery Time	3 Day(s)
Sample Available	YES
Delivery Details	FOB SHENZHEN
Loading Info	DHL,UPS,FedEx Express, Air transport or sea shipment
Packing Info	100-250PCS
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
