20W T8 LED tube driver-DALI-BHH240

Features:

• Built-in isolated constant current power supply which is specifically developed for T8 LED tubes
• Low harmonic, high efficiency, energy-saving and eco-friendly
• The LED light doesn’t shake obviously seeing from the camera lens when you shoot a picture with a digital camera or a camera phone
• Burn-in test: for at least 4 hours under environment temperature of 40 degrees Celsius
• Warranty: two years

Technical data:

• Input voltage: 170 to 265V AC, 50/60Hz
• Output voltage: 60V to 85V
• Output current:200-240mA
• Output power:6-20W (maximum)
• Conversion efficiency:96% (typical value)
• Power factor: up to 0.97
• Dielectric strength: 2KV AC
• Leakage current: 5mA, 60 seconds
• Protective function: open and short circuit protection
• Operating temperature range: -20 to 65 degrees Celsius
• Humidity: 35 to 80% RH
• MTBF calculation: up to 50,000 hours lifespan
• Mechanical specification appearance:

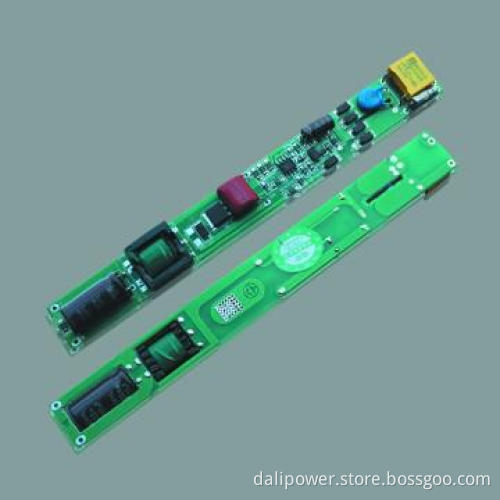

• Naked PCB
• Weight: 60g
