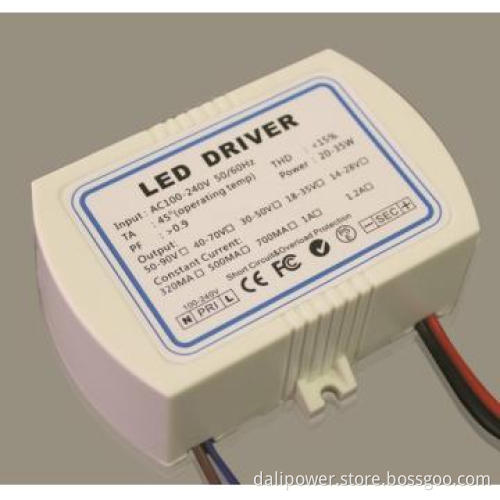

waterproof IP67 LED Driver external 35w for Ceiling light, down light

 Ceiling light, down light, flood light LED Driver 35W

Features:

• Universal AC input and full range
• Protections: OCP and SCP
• Driving 8 to 10 pcs 4W LEDs in series
• Dielectric strength: 1.5kV AC, leakage current 5mA, 60 seconds
• Built-in isolated constant current LED drivers
• Low-noise and environment-friendly
• Use highly efficient, steady and low-loss switch control chip
• Burn-in test: 100% for at least 4 hours under working temperature of 40°C
• Application: Ceiling light, down light, flood light.

Technical data:

• Power:35W
• Input voltage range: 100-240V  AC
• Frequency: 50 to 60Hz
• Power factor: 0.97(typical)
• Power efficiency: 90%
• Output voltage: 21 to 36VDC
• Output current: 900mA (typical value), 940mA (maximum)
• Operating temperature: -40 to 65°C
• Humidity: 35 to 80% RH
• MTBF calculation: up to 50,000 hours lifetime
• Naked PCB or plastic housing
• Dimension (L x W x H):85mm*55mm*35mm 85x55x35mm 858585
• Weight: 120g
