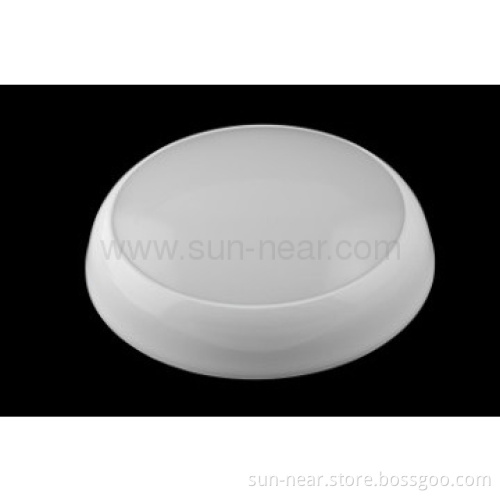

12W CE certificated led sensor light with emergency function
  • 12W CE certificated led sensor light with emergency function
  • 12W CE certificated led sensor light with emergency function
12W CE certificated led sensor light with emergency function
12W CE certificated led sensor light with emergency function

12W CE certificated led sensor light with emergency function

Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

Certification CE, RoHS
Power wattage 12W
Sensing range 0.5-8M (adjustable)
Emergency period >3 hours
Colour temperature cool white/ natural white/ warm white
IP IP54
Voltage 110-220V
Light Source LED Lamp

Detail Description

12W CE certificated led sensor light with emergency function




Application :

-Public areas of hotel /restaurant
-Public areas of hospital
-Aisle /stair half /elevate hoistway of all kind of building
-Public areas of  Local Authority building
-Circulation area in high rise council housing
-Public areas of mall/supper-market
-Parks
-Pedestrian subways in city centers




Product Features:

  •   LED lighting source: green and energy saving;
  •   IP54: only available for indoor use;
  •   Anti-aging cover: Polycarbonate (PC) cover;
  •   Anti-glare design: no dizzy light;
  •   Healthy and safe: no UV, no infrared, no other Hazardous Substances;
  •   Stability: no noise, no flicker, resistance from vibration;
  •   Reliable: 2 years warranty.
  •    Microwave/ Motion sensor:
        --Automatic dims when detected area is unattended
        --Adjustable range (1-8M)


Electric parameters:
Input   voltage ( 50/60Hz) AC 100-240V
Power consumption 12W  (14W for emergency versions)
PF >0.9
LED Driver  output voltage DC 36V
LED Driver  output current 300mA  ±15mA
Light source  5630 SMD LED 50 PCS
Color Temperature (CCT) 3000K / 4000K / 6000K (optional)
CRI  Ra>75
Luminous Flux 600 -720Lm
Luminous efficacy 50Lm /W for SN-ES12021-2
View angle 110°
Housing material PC housing , PC diffuser
IP Rating IP 54
Life Span Up to 50,000 hours
Operation temperature -20degC to 40degC
Dimension 325*100mm
Package 330*330*110mm
Net Weight 1.8kg(approx)
Emergency Lighting Function:
Type Maintained
Battery(High-Temperature) 9.6V 3.2AH Ni-MH rechargeable
Emergency output  30% nominal power
Emergency duration >3  Hours
Charge time < 12Hours
LED indication Red: charging;  Green: fully charged;
Yellow: battery fault or disconnected
Test button


AC power on:  Push and hold the button to enter emergency mode;  release button to come back AC power mode
Microwave Sensor:
Sensor range 180 degree;  0.5 - 8M(adjustable)
Sensing interval  10s to 5min max (adjustable)
Sensing interval output  25% of nominal power




LED Product Advantages:

  • High efficiency and energy saving: hi-lite, wide viewing angle and wide range of working voltage. It can take place of the traditional energy-saving lamps and save more than 85% energy.
  • Environment protection: no infrared and ultraviolet ray, no heating effect,no lead and mercury, in a word, without any pollution to the environment.
  • Stability and durability: with more than 50,000 hours lifetime, it is not affected by radiation; the material are durable,which makes the maintenance easier and more convenient.
  •  Packing specification: each piece is packed independently and environmentally.
  •  Certification:  passed CE, ROHS certification.
  •  Quality goal: Percentage of good products is more than 98%, final and timely shipments are  more       than 95%, custom complaint is less than one.


Dimension (mm):




Product Details:









Application Effect:






Additional Information

Payment Terms T/T, Others
Minimum Order 1 PCS
Lead Time / Delivery Time 7 Day(s)
Sample Available YES
Delivery Details The sample will be made delivery in 3~4 working days and will be in 2~3 weeks for bulk order.
FOB Port Shekou,Shenzhen
Loading Info By airtransportation or by sea.
Packing Info Independent box with waterproof plastic bag inside; 4pcs in one carton ( standard export packing)
Target Market(s) Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
