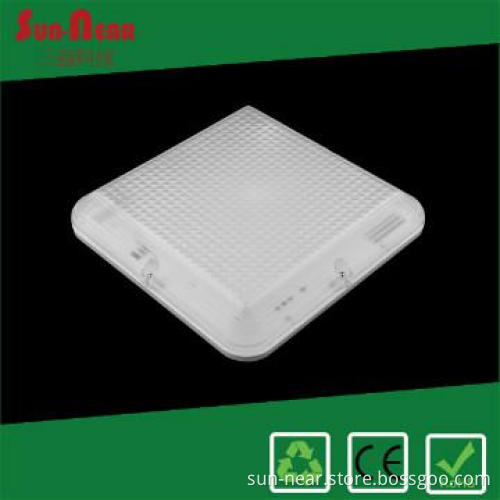

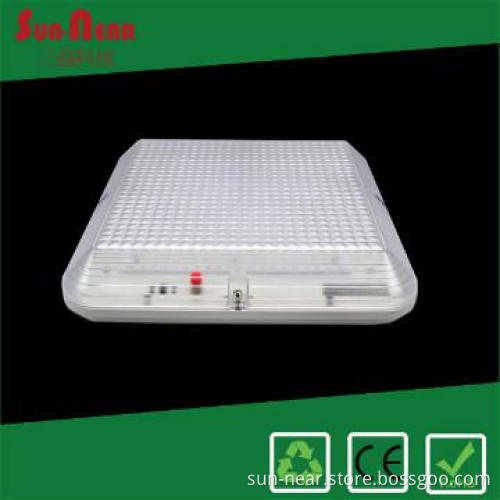

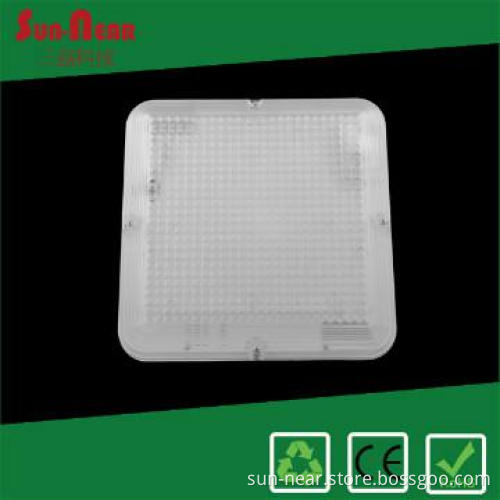

20W IP65 square emergency sensor bulkhead lamp
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Power | 20W(8~20W available) |
|---|---|
| IP Rating | IP65 |
| Input AC(50/60HZ) | 100-240V |
| Battery | 9.6v 3.2AH Ni-MH rechargeable battery |
| Light source | 2835 SMD LED |
| Voltage | 110-220V |
| IP | IP65 |
| Application | Car Park, Highway Lighting, Park, Petrol Station, Sport Yard, Square, Square Lighting, Tunnel Lighting |
| Material | Aluminum Die Casting, PC |
Detail Description
20W IP65 square emergency sensor bulkhead lamp
Application:
Suitable for both wall and ceiling mounting.
-Pedestrian subways in city centres
-Circulation area in high ries council housing
-Public areas in parks
-Permanent lighting for exterior market stalls
-Security lighting application
-Staircase
Electrical parameters:
Electrical parameters:
| Input voltage ( 50/60Hz) | AC 100-240V |
| Power consumption | 20 W |
| Power factor(PF) | >0.9 |
| LED Driver output voltage | DC 36V |
| LED Driver output current | 550mA ±25mA |
| Light source | SMD LED |
| Color Temperature | 3000K /4000K /6000K (optional) |
| CRI | Ra>75 |
| Flux luminous | 1600~2000Lm |
| Luminous efficacy | 80-100Lm /W |
| View angle | 110° |
| Housing material | Die-cast aluminum base , PC prismatic diffuser |
| IP Rating | IP 65 |
| Life Span | Up to 35,000 hours |
| Operation temperature | -10 deg C to 40 deg C |
| Dimension | 320*320*99mm |
| Package | 330*330*110mm |
| Net Weight | 3.05KG(approx) |
| Emergency: | |
| Type | Maintained |
| Battery(High-Temperature) | 9.6V 3.2AH Ni-MH rechargeable |
| Emergency output | 30% nominal power |
| Emergency duration | >3 Hours |
| Charge time | < 12Hours |
| LED indication | Red: charging; Green: fully charged; Yellow: battery fault or disconnected |
|
Test button |
AC power on: Push and hold the button to enter emergency mode; release button to come back AC power mode |
| Microwave Sensor: | |
| Sensor range | 180 degree; 0.5 - 8M (adjustable) |
| Sensing interval | 10s to 5min max (adjustable) |
| Sensing interval output | 25% normal power |
Additional Information
| Payment Terms | L/C, T/T, Others |
|---|---|
| Minimum Order | 1 |
| Lead Time / Delivery Time | 5 Day(s) |
| Sample Available | YES |
| Delivery Details | sample order: 3-5daysbulk order: 2-5weeks |
| FOB Port | Shekou,Shenzhen |
| Loading Info | By air transportation or sea |
| Packing Info | Standard exporting packng4pcs/carton |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
