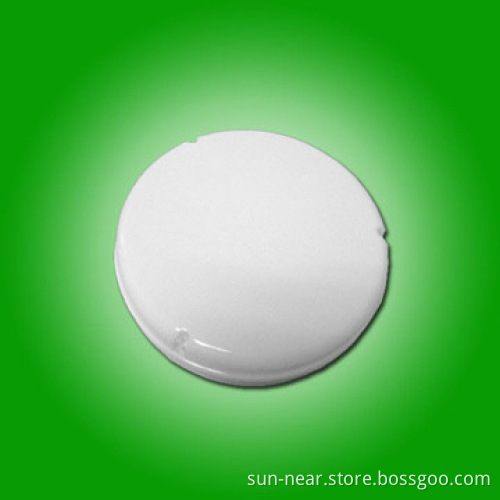

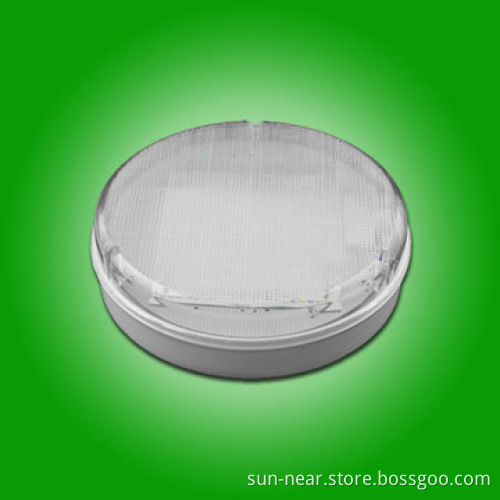

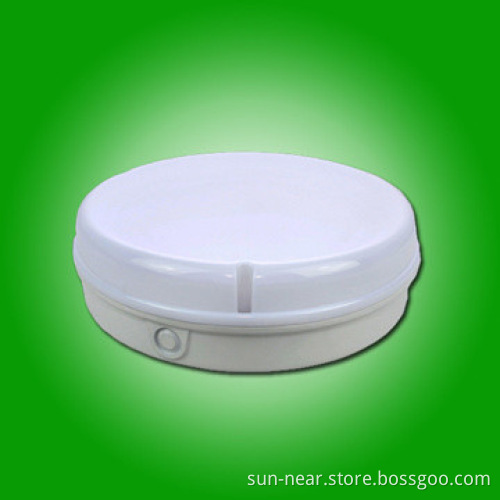

12w led emergency light IP65
  • 12w led emergency light IP65
  • 12w led emergency light IP65
  • 12w led emergency light IP65
12w led emergency light IP65
12w led emergency light IP65
12w led emergency light IP65

12w led emergency light IP65

Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

Input voltage AC100-240V
Warranty 2 years
Certifications CE,RoHS
Battery Capacity 1.8AH
Light Source LED
Battery Type Ni-Mh
Application Car Park, Hospital, Hotel, Museum, Office, Restaurant, School, Shopping Mall
Voltage 110-220V

Detail Description

12w led emergency light IP65

Product features:

1.Environmental friendly and energy-saving;

2.No UV or IR radiation;

3.SMD LED light source, high bright and soft light;

4.Superb structure and excellent thermal management;

5.Built -in converter, automatically switch to battery output when black out;

6.Ni-MH battery, at least 3 hours duration, and can be recharged up to 500 times;

7.Warranty: 2 years;

8.CE and RoHS compliant.



Applications:

Public areas of hotel /restaurant

Public areas of hospital

Aisle /stair half /elevate hoistway of all kind of building

Public areas of Local Authority building

Circulation area in high rise council housing

Public areas of mall/suppermarket

Parks

Pedestrian subways in city centres

Permanent lighting for exterior market stalls

Security lighting applications



Mechanical Structure:



Product Dimensions(mm):



Electrical Parameters:



Input   voltage ( 50/60Hz)

AC 100-240V

Power consumption

12W

PF

>0.9

LED Driver  output voltage

DC 30V

LED Driver  output current

350mA  ±15mA

Light source

SMD LED

Color Temperature(CCT)

3000K /4000K/ 6000K (optional)

CRI

>75

Flux luminous

680~720Lm

Luminous efficacy

60Lm /W for SN-ES12022-C-2

58Lm /W for SN-ES12022-S-2

57Lm /W for SN-ES12022-E-2

56Lm /W for SN-ES12022-2

View angle

120°

Housing material

PC housing, Prismatic/ frosted diffuser

IP Rating

IP 65

Life Span

Up to 35,000 hours

Operation temperature

-10°C to 40°C

Dimension

283*79mm

Package

300*300*110mm

Net Weight

1.78KG(approx)

Emergency Function:

Type

Maintained

Battery(High-Temperature)

9.6V 1.6AH Ni-MH rechargeable

Emergency output

30% nominal power

Emergency duration

>3  Hours

Charge time

< 12Hours

LED indication

Red: charging;     Green: fully charged;

Yellow: battery fault or disconnected

Test button





AC power on:  Push and hold the button to enter emergency mode;  release button to come back AC power mode



LED Product Advantages:


  • High efficiency and energy saving: hi-lite, wide viewing angle and wide range of working voltage. It can take place of the traditional energysaving lamps and save more than 85% energy.
  • Environment protection: no infrared and ultraviolet ray, no heating effect,no lead and mercury, in a word, without any pollution to the environment.
  • Stability and durability: with more than 5000 hours lifetime, it is not affected by radiation; the material are durable,which makes the maintenance easier and more convenient.
  •  Packing specification: each piece is packed independently and environmentally.
  •  Certification:  passed CE, ROHS certification.
  •  Quality goal: Percentage of good products is more than 98%, final and timely shipments are  more than 95%, custom complaint is less than one.

Product Series:

Model No. SN-ES12022-C-2: Common Lighting

Model No. SN-ES12022-E-2: Emergency Lighting

Model No. SN-ES12022-S-2: Sensing Lighting

Model No. SN-ES12022-2: Emergency & Sensing Lighting


Lighting effect application:

Ideal for  Home, Workshops, Garages, Shops, Commercial Toilets, Sports Halls, Gyms and Locker room.





Additional Information

Payment Terms T/T, Western Union
Minimum Order 2
Lead Time / Delivery Time 7 Day(s)
Sample Available YES
Delivery Details 3-7 working days
FOB Port Shenzhen,
Loading Info By air or by sea
Packing Info White and Color mail box
Target Market(s) North America, Oceania, Eastern Europe, Western & Southern Europe, Northern Europe
