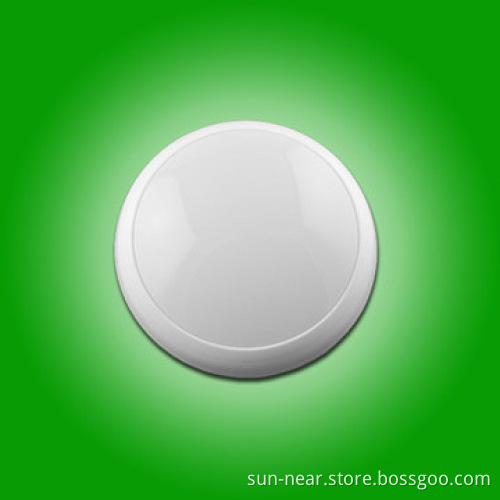

12w surface mounted led ceiling light
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
Style | European |
---|---|
Voltage | 110-220V |
Application | Shopping Mall |
IP | IP54 |
Material | PC |
Detail Description
12w surface mounted led ceiling light
Features:
1. Environmentally friendly and energy-saving;
2. No UV or IR radiation;
3. Superb structure, and excellent thermal management;
4. Even and soft light;
5. Long lifespan, more than 35,000 hours;
6. Warranty: 2 years;
7. CE and RoHS compliant.
Product Dimensions(mm):
Electrical Parameters:
Input voltage ( 50/60Hz) |
AC 100-240V |
Power consumption |
12W |
PF |
>0.9 |
LED Driver output voltage |
DC 30V |
LED Driver output current |
350mA ±15mA |
Light source |
SMD LED |
Color Temperature (CCT) |
3000K /4000K/ 6000K (optional) |
CRI |
>80 |
Luminous Flux |
620~680Lm |
Luminous efficacy |
58Lm /W for SN-ES12021-C-2 56Lm /W for SN-ES12021-S-2 55Lm /W for SN-ES12021-E-2 54Lm /W for SN-ES12021-2 |
View angle |
109° |
Housing material |
Polycarbonate |
IP Rating |
IP 54 |
Life Span |
Up to 35,000 hours |
Operation temperature |
-10degC to 40degC |
Dimension |
Dia325*100mm |
Package |
330*330*110mm |
Net Weight |
1.8KG(approx) |
LED Product Advantages:
- High efficiency and energy saving: hi-lite, wide viewing angle and wide range of working voltage. It can take place of the traditional energysaving lamps and save more than 85% energy.
- Environment protection: no infrared and ultraviolet ray, no heating effect,no lead and mercury, in a word, without any pollution to the environment.
- Stability and durability: with more than 5000 hours lifetime, it is not affected by radiation; the material are durable,which makes the maintenance easier and more convenient.
- Packing specification: each piece is packed independently and environmentally.
- Certification: passed CE, ROHS certification.
- Quality goal: Percentage of good products is more than 98%, final and timely shipments are more than 95%, custom complaint is less than one.
Product Series:
Model No. SN-ES12021-C-2: Common Lighting
Model No. SN-ES12021-E-2: Emergency Lighting
Model No. SN-ES12021-S-2: Sensing Lighting
Model No. SN-ES12021-2: Emergency & Sensing Lighting
Company Service:
OEM/ODM provided
Quick response for enquiry and after service.
Two years warranty
Quality goal: percentage of good products is more than 98%, final and timely shipments are more than 95%, customer complaint is less than one.
Lighting effect application:
Replaced traditional halogen ceiling light fixture at corridor and stair half in such premises as school, hospital, restaurant, shopping mall, etc.
Additional Information
Payment Terms | L/C, T/T, Western Union |
---|---|
Minimum Order | 1 |
Lead Time / Delivery Time | 7 Day(s) |
Sample Available | YES |
Delivery Details | 3-7 working days for sample,10-30 working days for bulk |
FOB Port | Shenzhen, |
Loading Info | By air or by sea |
Packing Info | Standard export packing |
Target Market(s) | North America, Oceania, Eastern Europe, Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia |
