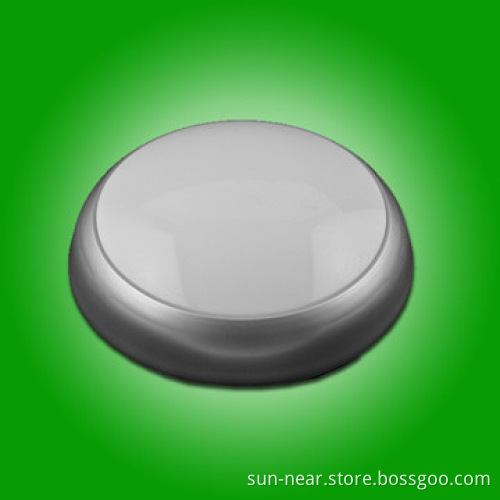

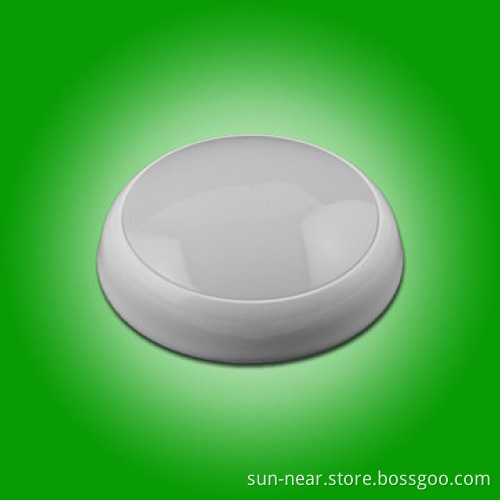

12w led emergency light with microwave sensor
  • 12w led emergency light with microwave sensor
  • 12w led emergency light with microwave sensor
12w led emergency light with microwave sensor
12w led emergency light with microwave sensor

12w led emergency light with microwave sensor

Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

Application Car Park
Style Modern
Voltage 110-220V
IP IP54
Material PC

Detail Description

12w led emergency light with microwave sensor



Features:

1.Environmental friendly and energy-saving;
2.No UV or IR radiation;
3.SMD LED light source, high bright and soft light, and instant start;
4.Superb structure and excellent thermal management;
5.Combining sensor and emergency functions;
6.With Microwave sensor, better than PIR sensor or light and sound sensor in detecting; 7.Light will be automatically powered on full light when people move in the detecting area, and 25% of full light (or customized) when leave,  10 -400second duration (or customized); 8.Wide detecting range: >140 degree, >8meters;
9.Built -in converter, automatically switch to battery output when black out;
10.Ni-MH battery, at least 3 hours duration, and can be recharged up to 500 times; 11.Warranty: 2 years;
12.CE and RoHS compliant.


Mechanical Structure:





Product Dimensions(mm)





Electrical Parameters:



Input   voltage ( 50/60Hz)

AC 100-240V

Power consumption

12W

PF

>0.9

LED Driver  output voltage

DC 30V

LED Driver  output current

350mA  ±15mA

Light source

SMD LED

Color Temperature (CCT)

3000K /4000K/ 6000K (optional)

CRI

Ra>80

Luminous Flux

620~680Lm

Luminous efficacy

58Lm /W for SN-ES12021-C-2

56Lm /W for SN-ES12021-S-2

55Lm /W for SN-ES12021-E-2

54Lm /W for SN-ES12021-2

View angle

109°

Housing material

Polycarbonate

IP Rating

IP 54

Life Span

Up to 35,000 hours

Operation temperature

-10degC to 40degC

Dimension

Dia325*100mm

Package

330*330*110mm

Net Weight

1.8KG(approx)

Emergency:

Type

Maintained

Battery(High-Temperature)

9.6V 1.6AH Ni-MH rechargeable

Emergency output

30% nominal power

Emergency duration

>3  Hours

Charge time

< 12Hours

LED indication

Red: charging;  Green: fully charged;

Yellow: battery fault or disconnected

Test button





AC power on:  Push and hold the button to enter emergency mode;  release button to come back AC power mode

Microwave Sensor:

Sensor range

180 degree;  0.5 - 8M(adjustable)

Sensing interval

10s to 5min max (adjustable)

Sensing interval output

25% of nominal power



LED Product Advantages:

  • High efficiency and energy saving: hi-lite, wide viewing angle and wide range of working voltage. It can take place of the traditional energysaving lamps and save more than 85% energy.
  • Environment protection: no infrared and ultraviolet ray, no heating effect,no lead and mercury, in a word, without any pollution to the environment.
  • Stability and durability: with more than 5000 hours lifetime, it is not affected by radiation; the material are durable,which makes the maintenance easier and more convenient.
  •  Packing specification: each piece is packed independently and environmentally.
  •  Certification:  passed CE, ROHS certification.
  •  Quality goal: Percentage of good products is more than 98%, final and timely shipments are  more than 95%, custom complaint is less than one.

Product Series:

Model No. SN-ES12021-C-2: Common Lighting

Model No. SN-ES12021-E-2: Emergency Lighting

Model No. SN-ES12021-S-2: Sensing Lighting

Model No. SN-ES12021-2: Emergency & Sensing Lighting



Company Service:

 OEM/ODM provided

Quick response for enquiry and after service.

Two years warranty

Quality goal: percentage of good products is more than 98%, final and timely shipments are more than 95%, customer complaint is less than one.



 Lighting effect application:

Ideal to site at Corridor, Stair half, Basement, Elevator and Toilet in domestic and commercial promises, i.e. Home, Hotel, Garages, Commercial Toilets, Sports Halls, Gyms and locker room.
