waterproof HIGH POWER LED Light Bar, high quality
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Voltage | 12V |
|---|
Detail Description

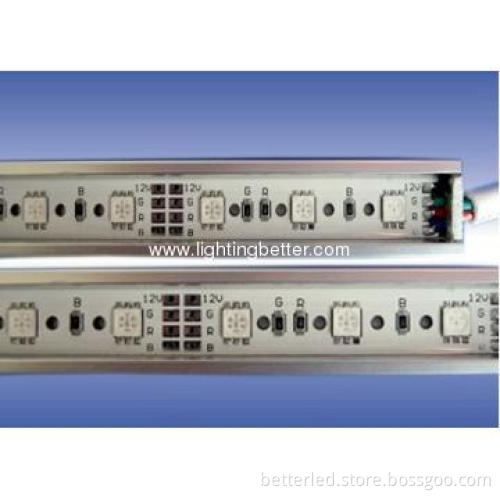

0.3W HIGH POWER LED Light Bar
(Non waterproof)
Features:
450mm*6mm*4.5mm 0.3Watt SMD LED Solid Strip (30PCS LED)
Working Voltage：DC12V
LEDWorking Current：550-650mA
LED Viewing Angle：120 Degree
Non Waterproof
Packing: White box , 50pcs/box
Application：
Advertising light box
Indoor illuminated light/decoration
Other edge decoration, cove lighting
Absoute Maximum Rating at TA=25°C：
Parameter |
Symbol |
Absoute Maximum Rating |
Unit |
Forward Current |
IF |
700 |
mA |
Power Dissipation |
PD |
8.4 |
W |
Elestrostatic discharge |
ESD |
800 |
V |
Operating Temperature |
Topr |
-25~+40 |
°C |
Storage Temperature |
Tstg |
-40~+80 |
°C |
Electrical／Ｏptical Characteristics at TA=25°C
Part Number |
Color |
Led Qty |
Led Work Current |
Wave Length |
Led Luminous Flux |
Packing |
White box , 50pcs/box |
||||||
BE- RC5050R30-A/NL6 |
□Red
|
30 |
550-650mA |
590-595nm |
130-180 Lm |
|
BE- RC5050G30-A/NL6 |
□Yellow
|
30 |
550-650mA |
465-470nm |
100-150 Lm |
|
BE- RC5050B30-A/NL6 |
□Blue
|
30 |
550-650mA |
515-520nm |
250-300 Lm |
|
BE- RC5050G30-A/NL6 |
□Green
|
30 |
550-650mA |
6000-7000k |
280-360 Lm |
|
BE- RC5050PW30-A/NL6 |
□Pure White
|
30 |
550-650mA |
7000-9000k |
280-360 Lm |
|
BE- RC5050CW30-A/NL6 |
□Cool White
|
30 |
550-650mA |
2900-3200k |
250-320 Lm |
Notes:1.Tolerance of measurement of luminous intensity±15%.
2.The luminous;wave length;color temperature of the LED can be custom-made according to the customers requirement.
Instruction：
1、 Connect with wires：
30pcs 0.3Watt SMD LED Solid Strip：There are two groups of white wires, one to connect the positive pole of power supply, the other to the cathode. As shown in the Figure as follow:
2. Installing&Note：
1)Please make sure the wire connection is correct.
2)Please make sure the strip work under/within the parameter as the form above.
3)Please note the effections of the possible static while installing and using, and avoid to thrust the LED or glue.
4)Make sure it far away from the strong acidity or basicity, nor the fire.
Additional Information
| Payment Terms | L/C, T/T |
|---|---|
| Minimum Order | 10 |
| Lead Time / Delivery Time | 10 Day(s) |
| Sample Available | YES |
| Target Market(s) | Eastern Europe, Latin America, Oceania |
