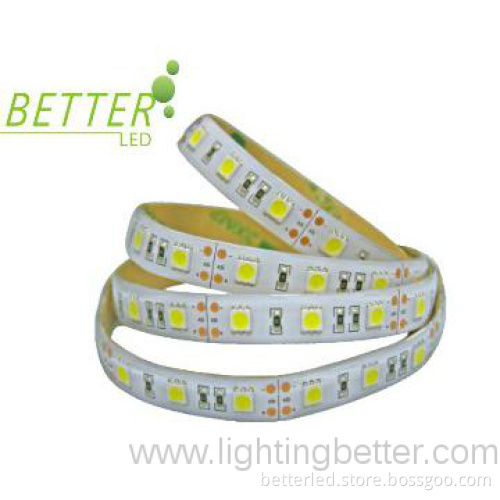

PU glue strip 5050 warm white 60leds/m CE
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| color | warm white |
|---|---|
| Voltage | 12V |
| Light Source | Induction |
| Colour | Warm white |
Detail Description
5050 NON waterproof strip 30leds/m DC24V(IP20)
Feature：
Safety Information
* The strip itself and all its components may not be mechanically stressed.
* Assembly must not damage or destroy conducting paths on the circuit board.
* Installation of LED ribbon (with power supplies) needs to be made with regard to all applicable
electrical and safety standards. Only qualified personnel should be allowed to perform installations.
* Correct electrical polarity needs to be observed. Wrong polarity may destroy the strip.
* Parallel connection is highly recommended as safe electrical operation mode.
* Serial connection is not recommended. Unbalanced voltage drop can cause hazardous overload and
damage the strip.
* Please ensure that the power supply is of adapters power to operate the total load.
* When mounting on metallic or otherwise conductive surfaces, there needs to be an electrical isolation
points between strip and the mounting surface.
* Pay attention to standard ESD precautions when installing the strip.
* Damaged by corrosion will not be honored as a materials defect claim. It is the user’s responsibility to
provide suitable protection against corrosive agents such as moisture and condensation and other harmful elements.
Feature：
* 5050 single color
* Size：1000*10mm
* Beam Angle：120 °
* LED：150 LED/roll（30 LED/M）
* NON waterproof IP20
* 3M tape in the back
* Working Voltage ：DC24V
* Working Current : 60 mA/ Group
* Power：7.2 W/M
* Brightness ：20-22lm/led
* CE Certificated
Application
*Cove lighting
*Architectural lights for canopy, corridor, window, archway
Backlight or edge lighting for signage
* DIY lights for home use
* Path and contour marking
* Decorative lights for holiday, event, show, exhibition
* Special light effect for art gallery and glass-made items
The following parameter all in DC12V
Item NO. |
color |
LED (pcs/m) |
Voltage (V) |
Power(W/M) |
Color Temperature |
Package |
SC01-1 |
white |
30 |
24 |
7.2 |
5000-6500K |
5m/roll |
Dimension (mm)
Connection
* The strip itself and all its components may not be mechanically stressed.
* Assembly must not damage or destroy conducting paths on the circuit board.
* Installation of LED ribbon (with power supplies) needs to be made with regard to all applicable
electrical and safety standards. Only qualified personnel should be allowed to perform installations.
* Correct electrical polarity needs to be observed. Wrong polarity may destroy the strip.
* Parallel connection is highly recommended as safe electrical operation mode.
* Serial connection is not recommended. Unbalanced voltage drop can cause hazardous overload and
damage the strip.
* Please ensure that the power supply is of adapters power to operate the total load.
* When mounting on metallic or otherwise conductive surfaces, there needs to be an electrical isolation
points between strip and the mounting surface.
* Pay attention to standard ESD precautions when installing the strip.
* Damaged by corrosion will not be honored as a materials defect claim. It is the user’s responsibility to
provide suitable protection against corrosive agents such as moisture and condensation and other harmful elements.
Additional Information
| Payment Terms | L/C, T/T, Western Union |
|---|---|
| Minimum Order | 10m |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | 7-15das |
| FOB Port | Shenzhen |
| Loading Info | Sample order: 3-5daysBulk order: 7-12days |
| Packing Info | Mainly we can ship the parts by DHL,FEDEX,UPS,TNT ect when the quantity is small. We can also ship by appointed cargo company by customers. |
| Target Market(s) | North America, Northern Europe, Oceania, Western & Southern Europe |
