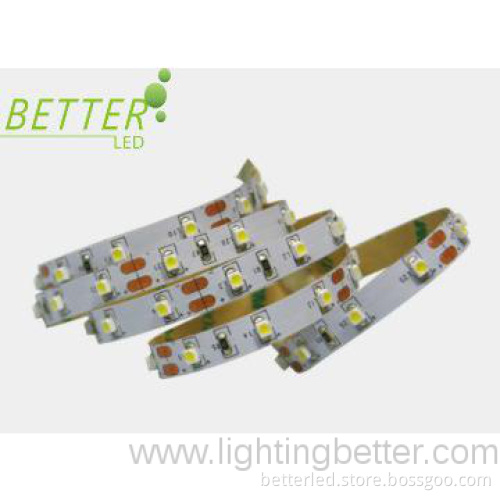

High power IP20 3528 flexible strip with 60leds/m warm white colour
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| colour | white/warm white/cold white ets |
|---|---|
| Voltage | 12V |
| Colour | Blue |
| Light Source | LED |
Detail Description
High power IP20 3528 flexible strip with 60leds/m
Feature：
* 3528 single color
* Size：1000*8mm
* Beam Angle：120 °
* LED：300LED/roll（60LED/M）
* NON waterproof IP20
*200MP 3M tape in the back
* Working Voltage ：DC12V
* Working Current : 20 mA/ Group
* Power：4.8 W/M
* Brightness ：7-8lm/led
* CE Certificated
Application
* Cove lighting
* Architectural lights for canopy, corridor, window, archway
* Backlight or edge lighting for signage
* DIY lights for home use
* Path and contour marking
* Decorative lights for holiday, event, show, exhibition
* Special light effect for art gallery and glass-made items
The following parameter all in DC12V
Dimension (mm)
Connection
Safety Information
* The strip itself and all its components may not be mechanically stressed.
* Assembly must not damage or destroy conducting paths on the circuit board.
* Installation of LED ribbon (with power supplies) needs to be made with regard to all applicable
electrical and safety standards. Only qualified personnel should be allowed to perform installations.
* Correct electrical polarity needs to be observed. Wrong polarity may destroy the strip.
* Parallel connection is highly recommended as safe electrical operation mode.
* Serial connection is not recommended. Unbalanced voltage drop can cause hazardous overload and
damage the strip.
* Please ensure that the power supply is of adapters power to operate the total load.
* When mounting on metallic or otherwise conductive surfaces, there needs to be an electrical isolation
points between strip and the mounting surface.
* Pay attention to standard ESD precautions when installing the strip.
* Damaged by corrosion will not be honored as a materials defect claim. It is the user’s responsibility to
provide suitable protection against corrosive agents such as moisture and condensation and other harmful elements.
* 3528 single color
* Size：1000*8mm
* Beam Angle：120 °
* LED：300LED/roll（60LED/M）
* NON waterproof IP20
*200MP 3M tape in the back
* Working Voltage ：DC12V
* Working Current : 20 mA/ Group
* Power：4.8 W/M
* Brightness ：7-8lm/led
* CE Certificated
Application
* Cove lighting
* Architectural lights for canopy, corridor, window, archway
* Backlight or edge lighting for signage
* DIY lights for home use
* Path and contour marking
* Decorative lights for holiday, event, show, exhibition
* Special light effect for art gallery and glass-made items
The following parameter all in DC12V
Item NO. |
color |
LED (pcs/m) |
Voltage (V) |
Power(W/M) |
Color Temperature |
Package |
SA01-1 |
warm white |
60 |
12 |
4.8W |
2900-3200K |
5m/roll |
Dimension (mm)
Connection
Safety Information
* The strip itself and all its components may not be mechanically stressed.
* Assembly must not damage or destroy conducting paths on the circuit board.
* Installation of LED ribbon (with power supplies) needs to be made with regard to all applicable
electrical and safety standards. Only qualified personnel should be allowed to perform installations.
* Correct electrical polarity needs to be observed. Wrong polarity may destroy the strip.
* Parallel connection is highly recommended as safe electrical operation mode.
* Serial connection is not recommended. Unbalanced voltage drop can cause hazardous overload and
damage the strip.
* Please ensure that the power supply is of adapters power to operate the total load.
* When mounting on metallic or otherwise conductive surfaces, there needs to be an electrical isolation
points between strip and the mounting surface.
* Pay attention to standard ESD precautions when installing the strip.
* Damaged by corrosion will not be honored as a materials defect claim. It is the user’s responsibility to
provide suitable protection against corrosive agents such as moisture and condensation and other harmful elements.
Additional Information
| Payment Terms | L/C, T/T, Others |
|---|---|
| Minimum Order | 10PCS |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | 7-15DAYS |
| FOB Port | Shenzhen |
| Loading Info | FEDEX,UPS,DHL |
| Packing Info | 5m/reel, 60reels in a carton, carton size: 44x42x24cm |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
