Best selling 5050 PU waterproof magic strip 30leds/m (IP65)

Features:

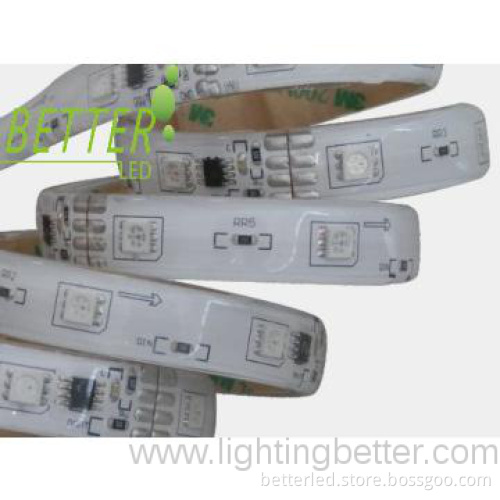

*1000mm*12mm Magic strip with tube waterproof, 30leds/m 5050 RGB LED。
*With 3 paths driver IC inside to drive 1 pixel（3paths will be1 pixel），Connecting with
  the controller will get many programs which are various color changing and almost magic effect.
*Working Voltage ：DC12V
*LED working current ：2950-3000MA
*Flexible FPC
*LED beam angle： 120degree
*Waterproof IP65 with PU glue
*3leds/group，100mm，1 pixel
*Package： 5m/ROLL

Applications：
*Path& contour marking.
*LED light box. and LED display decoration; Indoor decoration
*Illuminated signs.
*Mood and special light.

Dimensions and Schematic Diagram：


Absoute Maximum Rating（Ta=25°C）：

Electrical／optical Characteristics (Ta=25°C)


Note：1. Tolerance of measurement of luminous intensity±15% .

             2. The luminous; wave length; color temperature of the LED can be custom-made .

Instruction：
1.Connect with wires：
   There are 2 cables in one roll magic strip, one is DC12V input cable, the other one is to connect with the controller .

      There are 3 wires (blue, red, green)from the controller signal output cable, connect with the signal input wires on magic strip（there are arrow on the PCB, it’s the input of signal, the wires there are the the positive and negative of power）：

     The strip is suggested to be fixed by the mounting clips. 3pcs fixing clips each meter. Need to use M3 screw to fix the fixing clips . The mounting clip is made of completely transparent PC material, exalted and would not affect the strip appearance. Following is its size:

Please fix the strip with mounting clips like this:：


Installation Note：

1、Magic strip can not be  Pressed heavy
2、Don’t break the circuit on PCB when install
3、Don’t pull the strip on floor
4、Please make sure use the led magic strip under correct voltage, and connect with the positive
      and negative , make sure the parameters are under the max parameter.
5、We suggest the strip and power are in parallel .If connect the strip in series too many meters ,
     the end of strip may be different brightness with the beginning. *5meters in series are suggested .
6、When install，please be care of ESD protection .
7、The strip can not be bend less than 60 degree .
8、The glue in the surface may be corrosive, so please make sure the strips are working in a normal
     environment.
9、Before replacement and maintain, please cut off the power.
10、If Install outside, please do some waterproofing in the connect port ,otherwise raining will
     have some effect with the function .

If it can not work, please check ：

1、Strip not light
               *Check the power is DC12V.
               *Check the power wires are connected well
2、Brightness is less
3、Check the power switch, the power output voltage is correct for strip
4、The strip work, but no color change.
5、Check the magic strip and the signal cable is correct in connection .
   Check the power switch is on or off, need to be on .
