5630 PU waterproof flexible strip(SAMSUNG) 30leds/0.5m (IP65)
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| LED | SAMSUNG LED |
|---|---|
| Voltage | 12V |
| Colour | White |
| Light Source | LED |
Detail Description

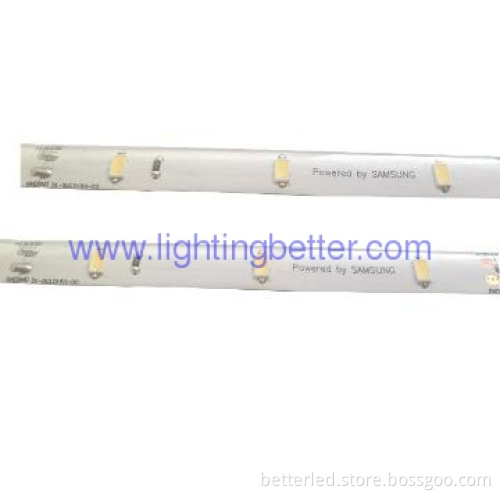

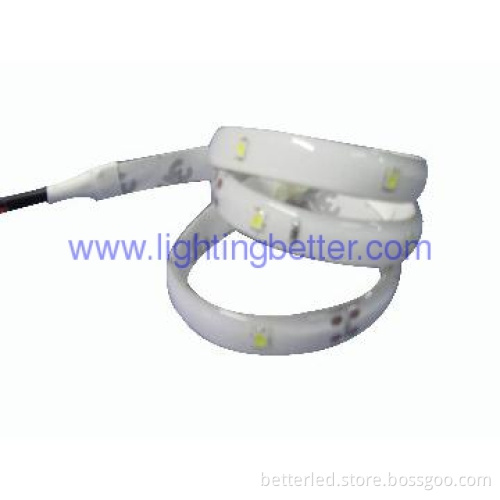

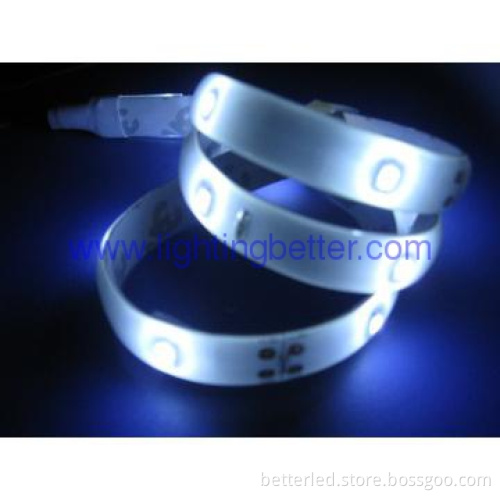

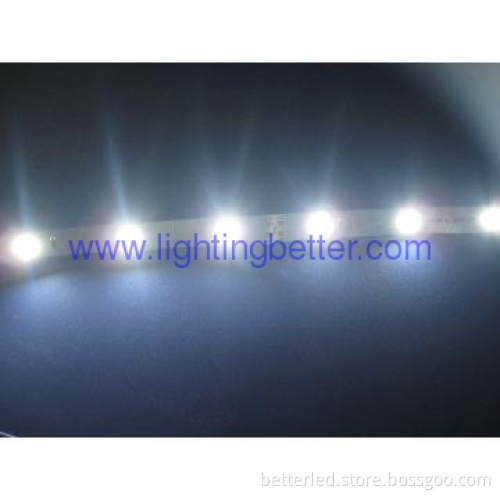

5630 PU waterproof flexible strip (SAMSUNG)30leds/0.5m (IP65)
Feature：
Dimension (mm):
Connection:
Safety Information
* The strip itself and all its components may not be mechanically stressed.
* Assembly must not damage or destroy conducting paths on the circuit board.
* Installation of LED ribbon (with power supplies) needs to be made with regard to all applicable electrical and safety standards. Only qualified personnel should be allowed to perform installations.
* Correct electrical polarity needs to be observed. Wrong polarity may destroy the strip.
* Parallel connection is highly recommended as safe electrical operation mode.
* Serial connection is not recommended. Unbalanced voltage drop can cause hazardous overload and damage the strip.
* Please ensure that the power supply is of adapters power to operate the total load.
* When mounting on metallic or otherwise conductive surfaces, there needs to be an electrical isolation points between strip and the mounting surface.
* Pay attention to standard ESD precautions when installing the strip.
* Damaged by corrosion will not be honored as a materials defect claim. It is the user’s responsibility to provide suitable protection against corrosive agents such as moisture and condensation and other harmful elements.
* 5630 single color
* Size：1000*10mm
* Beam Angle：120 °
* LED：150LED/roll（30LED/M）with SAMSUNG led
* Waterproof IP65 with PU gule
* 200MP 3M tape in the back
* Working Voltage ：DC12V
* Working Current : 60 mA/ Group
* Power：9.6W/M
* Brightness ：40-50lm/led
* CE Certificated
Application:
* Size：1000*10mm
* Beam Angle：120 °
* LED：150LED/roll（30LED/M）with SAMSUNG led
* Waterproof IP65 with PU gule
* 200MP 3M tape in the back
* Working Voltage ：DC12V
* Working Current : 60 mA/ Group
* Power：9.6W/M
* Brightness ：40-50lm/led
* CE Certificated
Application:
* Cove lighting
* Architectural lights for canopy, corridor, window, archway
* Backlight or edge lighting for signage
* DIY lights for home use
* Path and contour marking
* Decorative lights for holiday, event, show, exhibition
* Special light effect for art gallery and glass-made items
The following parameter all in DC12V
Specification:
Item NO. |
color |
LED (pcs/m) |
Voltage (V) |
Power(W/M) |
Color Temperature |
Package |
SE01-2 |
white |
30 |
12 |
4.2 |
5000-6500K |
5m/roll |
Dimension (mm):
Connection:
Safety Information
* The strip itself and all its components may not be mechanically stressed.
* Assembly must not damage or destroy conducting paths on the circuit board.
* Installation of LED ribbon (with power supplies) needs to be made with regard to all applicable electrical and safety standards. Only qualified personnel should be allowed to perform installations.
* Correct electrical polarity needs to be observed. Wrong polarity may destroy the strip.
* Parallel connection is highly recommended as safe electrical operation mode.
* Serial connection is not recommended. Unbalanced voltage drop can cause hazardous overload and damage the strip.
* Please ensure that the power supply is of adapters power to operate the total load.
* When mounting on metallic or otherwise conductive surfaces, there needs to be an electrical isolation points between strip and the mounting surface.
* Pay attention to standard ESD precautions when installing the strip.
* Damaged by corrosion will not be honored as a materials defect claim. It is the user’s responsibility to provide suitable protection against corrosive agents such as moisture and condensation and other harmful elements.
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 5m/roll |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | Delivery time:7-15days |
| FOB Port | Shenzhen |
| Loading Info | FOBshenzhen,FEDEX,EMS,DHL,UPS.TNT |
| Packing Info | 5meters/roll,antistatic bag and export carton,carton size:44*42*24cm |
| Target Market(s) | Africa(except Middle East), Japan & Korea, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
