5050 full tube + silicon glue strip 30leds/m DC24V (IP68)
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Colour | White/Warm White/Blule |
|---|---|
| Colour | cool white |
| Voltage | 24V |
| Light Source | Induction |
Detail Description

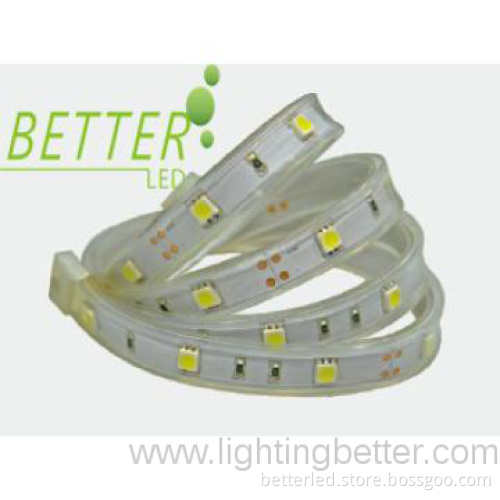

5050 full tube + silicon glue strip 30leds/m DC24V（IP68)
* The strip itself and all its components may not be mechanically stressed.
* Assembly must not damage or destroy conducting paths on the circuit board.
* Installation of LED ribbon (with power supplies) needs to be made with regard to all applicable
electrical and safety standards. Only qualified personnel should be allowed to perform installations.
* Correct electrical polarity needs to be observed. Wrong polarity may destroy the strip.
* Parallel connection is highly recommended as safe electrical operation mode.
* Serial connection is not recommended. Unbalanced voltage drop can cause hazardous overload and damage the strip.
* Please ensure that the power supply is of adapters power to operate the total load.
* When mounting on metallic or otherwise conductive surfaces, there needs to be an electrical isolation points between strip and the mounting surface.
* Pay attention to standard ESD precautions when installing the strip.
* Damaged by corrosion will not be honored as a materials defect claim. It is the user’s responsibility to provide suitable protection against corrosive agents such as moisture and condensation and other harmful elements.
Feature：
* 5050 single color
* Size：1000*10mm
* Beam Angle：120 °
* LED：150 LED/roll（30 LED/M）
* Waterproof IP68 with full tube + silicon glue
* 200MP 3M tape in the back
* Working Voltage ：DC24V
* Working Current : 60 mA/ Group
* Power：7.2 W/M
* Brightness ：20-22lm/led
* CE Certificated
Application
* Cove lighting
* Architectural lights for canopy, corridor, window, archway
* Backlight or edge lighting for signage
* DIY lights for home use
* Path and contour marking
* Decorative lights for holiday, event, show, exhibition
* Special light effect for art gallery and glass-made items
The following parameter all in DC12V
Item NO. |
color |
LED (pcs/m) |
Voltage (V) |
Power(W/M) |
Color Temperature |
Package |
SC01-3 |
white |
30 |
24 |
7.2 |
5000-6500K |
5m/roll |
Dimension (mm)
Connection
Safety Information
* Assembly must not damage or destroy conducting paths on the circuit board.
* Installation of LED ribbon (with power supplies) needs to be made with regard to all applicable
electrical and safety standards. Only qualified personnel should be allowed to perform installations.
* Correct electrical polarity needs to be observed. Wrong polarity may destroy the strip.
* Parallel connection is highly recommended as safe electrical operation mode.
* Serial connection is not recommended. Unbalanced voltage drop can cause hazardous overload and damage the strip.
* Please ensure that the power supply is of adapters power to operate the total load.
* When mounting on metallic or otherwise conductive surfaces, there needs to be an electrical isolation points between strip and the mounting surface.
* Pay attention to standard ESD precautions when installing the strip.
* Damaged by corrosion will not be honored as a materials defect claim. It is the user’s responsibility to provide suitable protection against corrosive agents such as moisture and condensation and other harmful elements.
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 5m/roll |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | Delivery time:7-15days |
| Loading Info | FOBshenzhen,FEDEX,EMS,DHL,UPS.TNT |
| Packing Info | 5meters/roll,antistatic bag and export carton,carton size:44*42*24cm |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Japan & Korea, Latin America, North America, Northern Europe |
