5050 Magic strip PU waterproof 30leds/m(IP65) for indoor decoration
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Colour | Magic color |
|---|---|
| size | 1000*12mm |
| Working current | 2950-3000MA |
| Voltage | 12V |
| Colour | Full-color |
| Light Source | Induction |
Detail Description

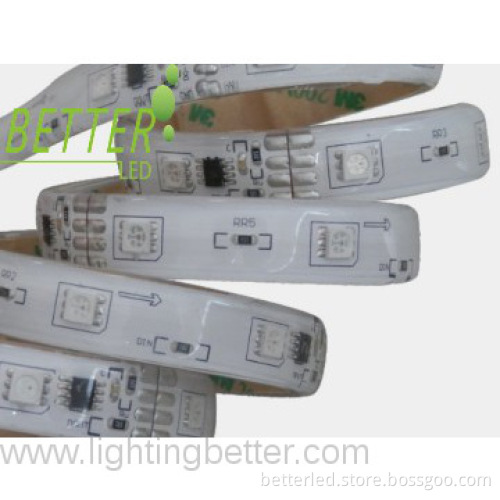

5050 PU waterproof magic strip 30leds/m DC12V（IP65)
* Magic strip can not be Pressed heavy
* Don\'t break the circuit on PCB when install
* Don\'t pull the strip on floor
* Pls make sure use the led magic strip under correct voltage,and connect with the positive and negative,make sure the parameters are under the max parameter
Feature：
* 5050 magic color
* Size：1000*12mm
* Beam Angle：120 °
* LED：150 LED/roll（30 LED/M）
* Waterproof IP65 with PU
* 200MP 3M tape in the back
* Working Voltage ：DC12V
* Working Current : 2950-3000MA
* Package:5m/roll
* 3leds/group,100mm,1 pixel
* Package:5m/roll
* 3leds/group,100mm,1 pixel
* CE Certificated
Application
* Path&contour marking
*LED light box and LED display decoration; indoor decoration
*Illuminated signs
*Mood and special light
The following parameter all in DC12V
Item NO. |
color |
LED (pcs/m) |
Voltage (V) |
Working Current |
Color Temperature |
Package |
SF01-2 |
RGB |
30 |
12 | 2950-3000mA
|
Red:625-630nm Blue:465-470nm Green:515-520nm | Blister package 5metres/roll
|
Dimension (mm)
Connection
Installation Note
* Don\'t break the circuit on PCB when install
* Don\'t pull the strip on floor
* Pls make sure use the led magic strip under correct voltage,and connect with the positive and negative,make sure the parameters are under the max parameter
* We suggest the strip and power are in parallel. if connect the strip in series too many meters,the end of strip may be different brightness with the beginning,5 meters in series are suggested
* When install,pls be care of ESD protection
* This strip can not be bend less than 60 degree
* The glue in the surface may be corrosive, so please make sure the strips are working in a normal environment
*Before replacement and maintain,pls cut off the power
* If install outside,pls do some waterproofing in the connect port,otherwise raining will have some effect with the function
* When install,pls be care of ESD protection
* This strip can not be bend less than 60 degree
* The glue in the surface may be corrosive, so please make sure the strips are working in a normal environment
*Before replacement and maintain,pls cut off the power
* If install outside,pls do some waterproofing in the connect port,otherwise raining will have some effect with the function
Additional Information
| Payment Terms | L/C, T/T |
|---|---|
| Minimum Order | 5m/roll |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | Delivery time:7-15days |
| Loading Info | FOBshenzhen,FEDEX,EMS,DHL,UPS.TNT |
| Packing Info | 5meters/roll,antistatic bag and export carton,carton size:44*42*24cm |
| Target Market(s) | North America, Africa(except Middle East), Latin America, Japan & Korea, Northern Europe, Central & Southern Asia |
